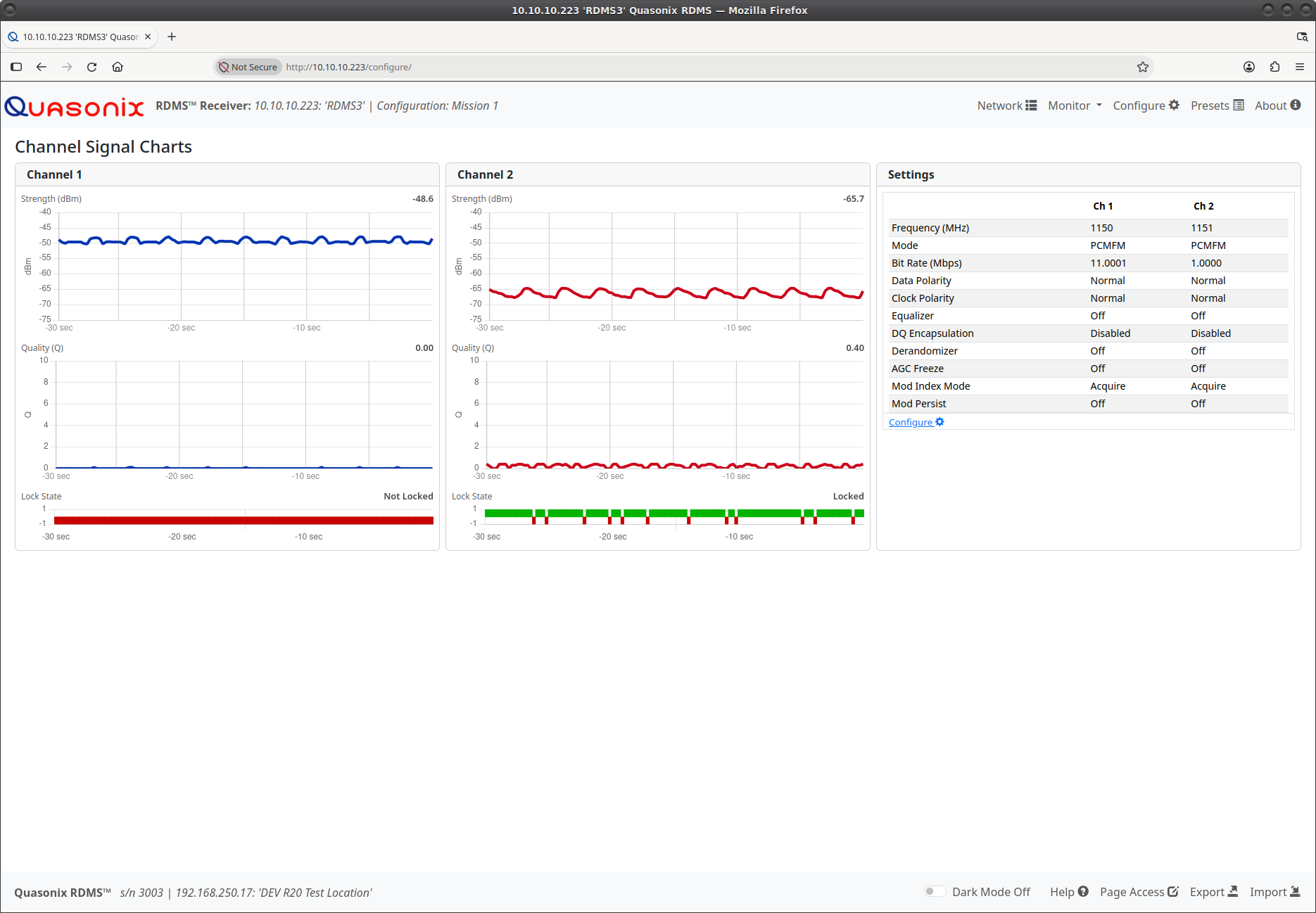

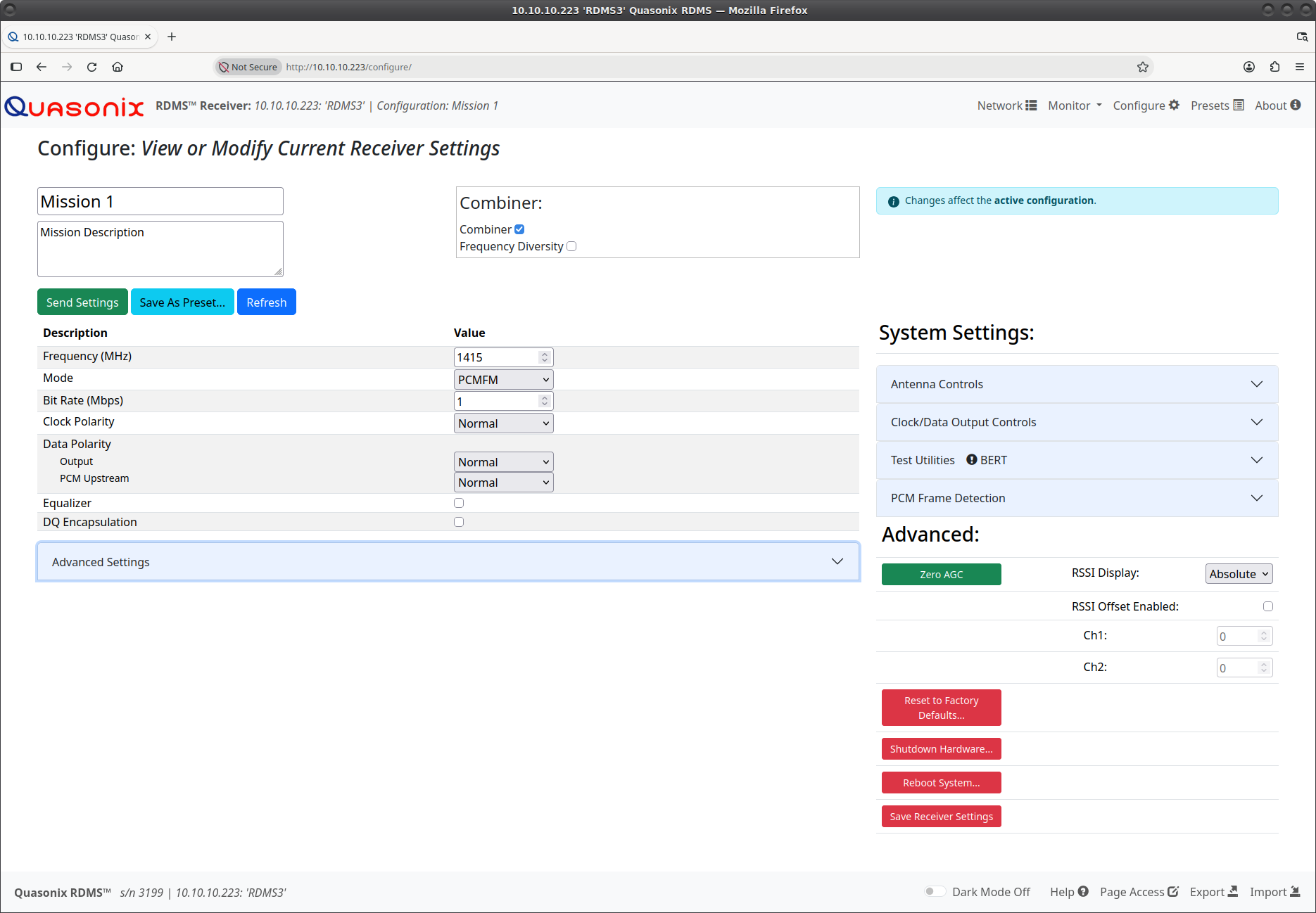

Features, block diagram, overview of the remote client user interface, specifications, and possible band configurations for Quasonix’s third-generation compact (airborne) RDMS™ telemetry receiver-combiner.
The Industry’s Premier Receiver Takes to The Air
The highest-performing telemetry receiver on the market is now available in a compact, flight-ready package. Experience the industry’s fastest synchronization, best SOQPSK-TG detection, premier Best-Channel Selector and Adaptive Equalizer, and all the advantages of diversity combining – anywhere your test article takes you.
Get Stronger Core Performance
Benefit from lower noise, higher gain, faster sync, and greater ability to hold sync than any competing demodulator—in all ARTM modes, under the most challenging conditions.
View datasheet
Be Prepared for Any Mission
With a tuning range from 200 MHz to 5250 MHz, simultaneous RS-422 and TTL outputs, a built-in playback demodulator and integrated three-channel spectrum analyzer, and much more, you’ll have the capabilities you need for success every mission.
View datasheet
Ace the Toughest Tests
LDPC error correction nearly triples operating range; STC eliminates deep fades in two-antenna setups; and the industry’s best Adaptive Equalization (optional) deftly neutralizes multipath.
View datasheet
Understand Your Data’s Quality—For Real
RDMS features the industry’s most accurate Data Quality Metric (DQM)—a real-time assessment of BEP—coupled with flawless Data Quality Encapsulation (DQE), rigorously powering downstream processes like BSS.
View datasheet
Ensure Optimal Data Output
The receiver’s integrated best-channel selector—a Quasonix exclusive—uses DQM bit by bit to choose the highest-quality data, matching or outperforming traditional maximal-ratio combining across all channel conditions.
View datasheet
Documents
Quasonix Catalog
Catalog of Quasonix’s full product line including transmitters, antennas, receivers, networking equipment, and test equipment. Also includes examples of possible product configurations.
Best-Channel Selection ITC Paper
“Obtaining Superior Performance From Dual-Channel Receivers Using Best-Channel Selection,” by Jim Uetrecht; presented at ITC 2018.
Best-Channel Selection Field Test Results ITC Paper
“Dual-Channel Receiver Performance Using Best-Channel Selection: Field Test Results,” by Jim Uetrecht; presented at ITC 2019.
RDMS™ Receiver Adaptive Equalizer Datasheet
Describes Quasonix’s telemetry receivers’ Adaptive Equalizer Mode, which combats multipath fading.
Receiver and Transmitter Space-Time Coding Datasheet
The Quasonix Space Time Coding Solution eliminates link outages caused by the “two-antenna problem,” improving behavior of received signal power and overall link availability.
Receiver and Transmitter Low-Density Parity Check Datasheet
The Low Density Parity Check (LDPC) Forward Error Correction mode improves link margin equivalent to nearly tripling the operating distance on your telemetry link.
Space-Time Coding ITC Paper
“Space-Time Coding Solution to the Two-Antenna Interference Problem,” by Mark Geoghegan & Louis Boucher; presented at ITC 2014.
SOQPSK with LDPC ITC Paper
“SOQPSK with LDPC: Spending Bandwidth to Buy Link Margin,” by Terry Hill & Jim Uetrecht; presented at ITC 2013.
DQM and RDMS™ Troubleshooting Guide
Introduction to the Data Quality Metric and its role in troubleshooting, and an essential troubleshooting flowchart for Gen 3 RDMS™.
RDMS™ Rackmount Receiver Tape Output Configuration Guide
How to set up tape output for third-generation Quasonix rackmount telemetry receivers, including commands, connectors used, and troubleshooting.
1.1.1
RDMS™ Rackmount Receiver Firmware Update Guide (Gen 3)
Documents three methods for updating firmware on a Quasonix 3rd-Generation Rackmount RDMS™ Telemetry Receiver: SD Card; Network ; and Local.
1.2
RDMS™ Receiver Bit Error Rate Testing Guide
Instructions and commands for bit error rate testing on Quasonix RDMS™ receivers, plus guidance on using test noise (AWGN) commands.
1.0.1
RDMS™ Receiver Telnet and Serial Control Protocol Guide
Instructions for accessing and using Quasonix RDMS™ receivers’ serial control interface, including commands and syntax, for debugging purposes. The Telnet interface should only be accessed by advanced users. Contact Quasonix customer support before using these options.
1.0.5
RDMS™ Receiver Scripting Guide
Technical guide for understanding, creating, and editing scripts for Quasonix RDMS™ receivers.
1.0
Receiver Manuals
Find all receiver User Manuals here. This page also explains how to find the onboard User Manual—matched to your unit’s software version—in rackmount units built or updated since late 2016.
RDMS™ Compact Receiver-Combiner Manual (Gen 3, R19)
Installation and operation of the Quasonix 3rd Generation Compact RDMS™ Telemetry Receiver-Combiner, updated to match RDMS™ System Version 19.3.
1.0.4
SOQPSK Adaptive Equalization Demo (Training)
Original, received (three-ray), and equalized SOQPSK signal.
(Used in TM Smorgasbord training, Day 2.)
PCMFM Adaptive Equalization Demo (Training)
Original, received (three-ray), and equalized PCMFM signal.
Used in TM Smorgasbord training, Day 2.)
Maximal Ratio Combiner Simulation
Simulation of maximal-ratio diversity combining, showing how it phase aligns and coherently sums two signals but non-coherently sums their noise, resulting in up to 3 dB improvement in signal-to-noise ratio.
RDMS™ Adaptive Equalizer Demonstration – PCMFM
Brief demonstration of how our RDMS™ Adaptive Equalizer can conquer multipath, transforming a PCMFM signal with severe three-ray multipath distortion into nearly perfect data.
(Used in TM Smorgasbord training, Day 2.)
RDMS™ Adaptive Equalizer Demonstration – SOQPSK
Brief demonstration of how our RDMS™ Adaptive Equalizer can conquer multipath, transforming an SOQPSK signal with severe three-ray multipath distortion into nearly perfect data.
