Digital Dexterity

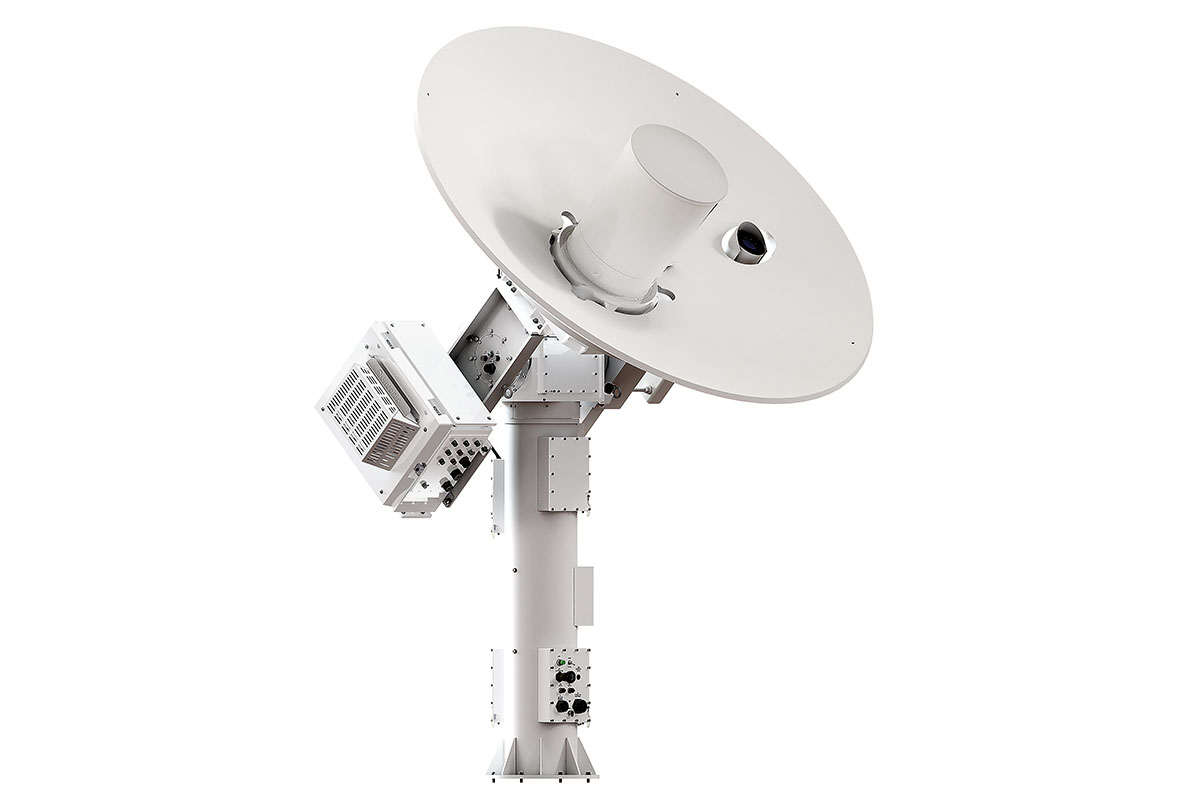

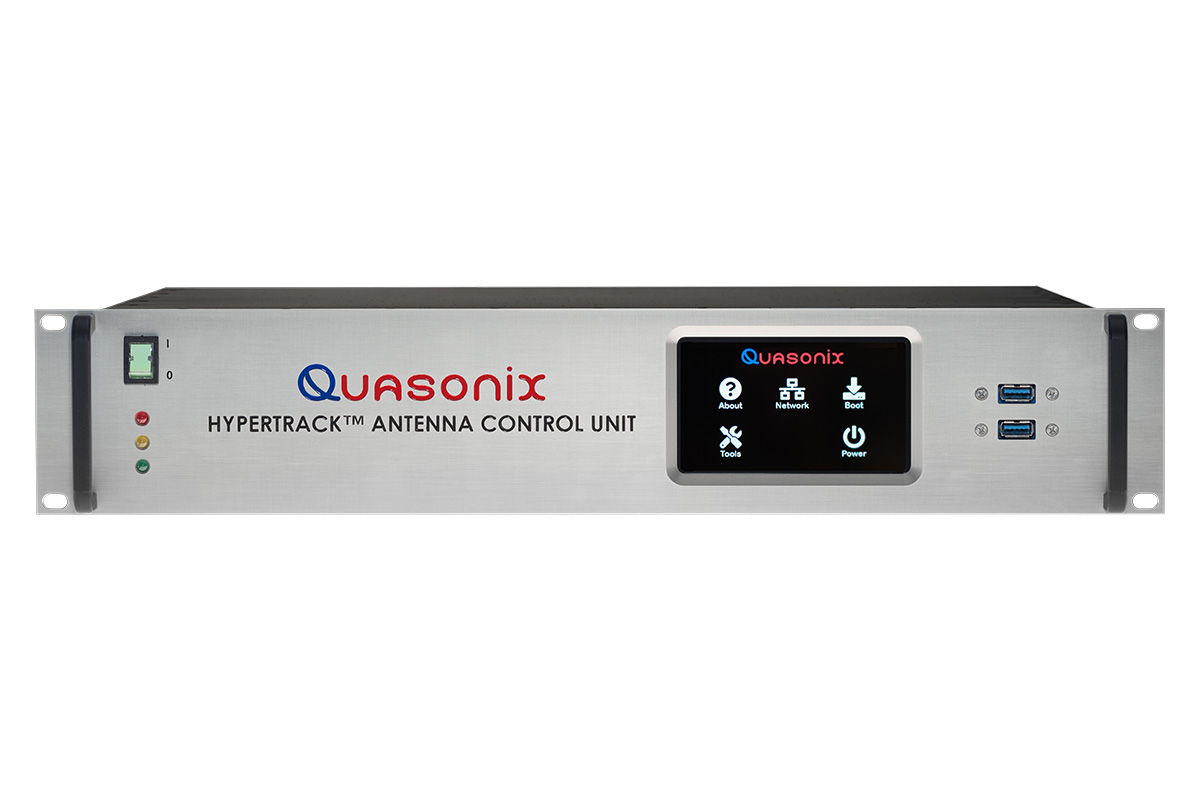

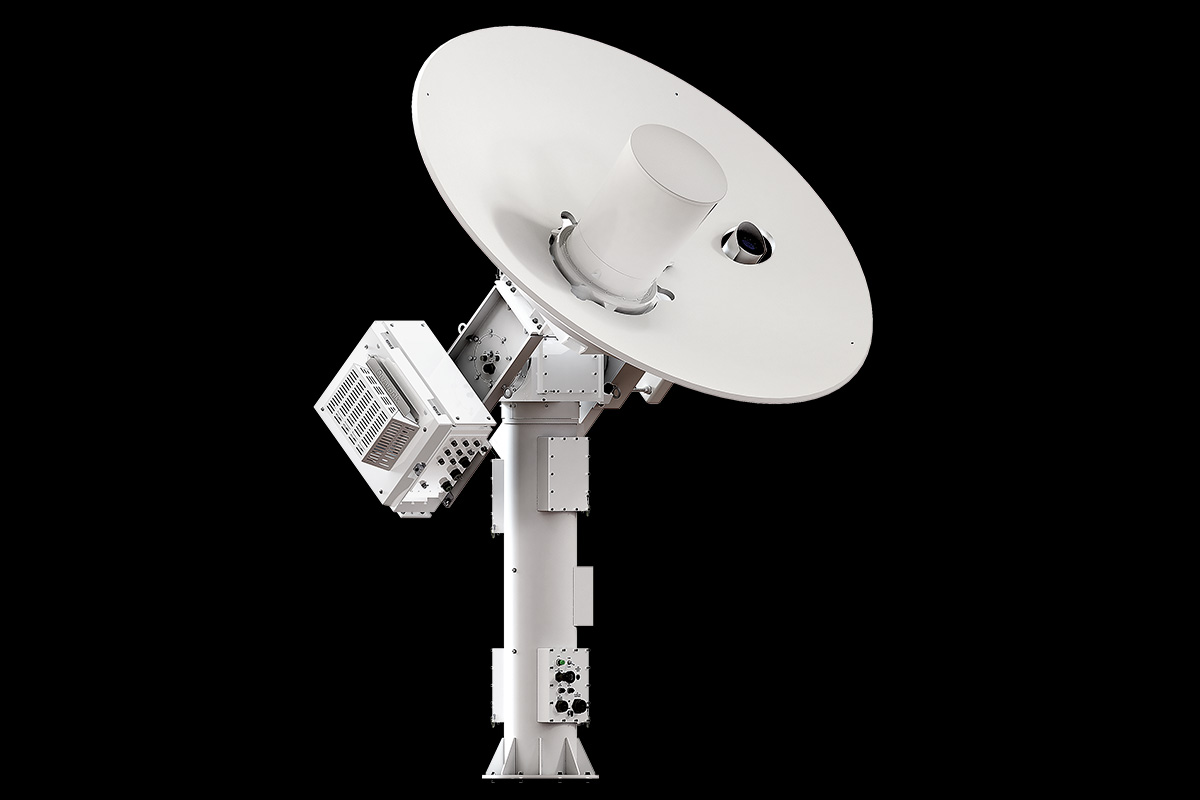

Quasonix PD Series™ antennas offer a new generation of performance, usability, and versatility. The bedrock of every system is the HyperTrack™ Antenna Controller (HTAC), with real-time FPGA processing for faster response and extremely smooth, accurate tracking. With reflectors from 3 to 24 feet (1 to 7.3 meters), coverage across the full telemetry frequency range, and modular designs engineered for long service life, minimal maintenance, and expandability, we have an antenna to fit your needs—and exceed your expectations.
Featured Systems

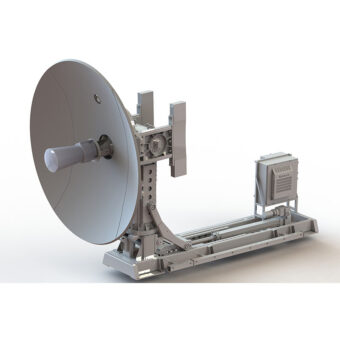

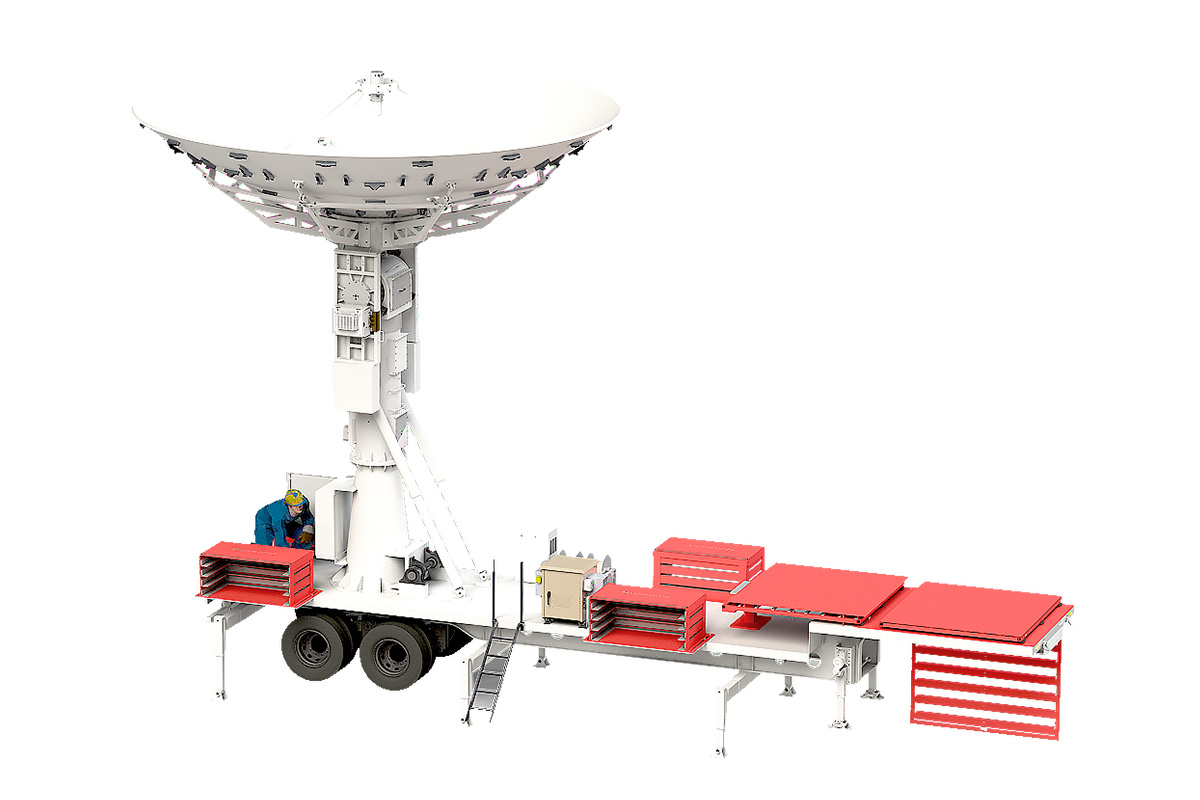

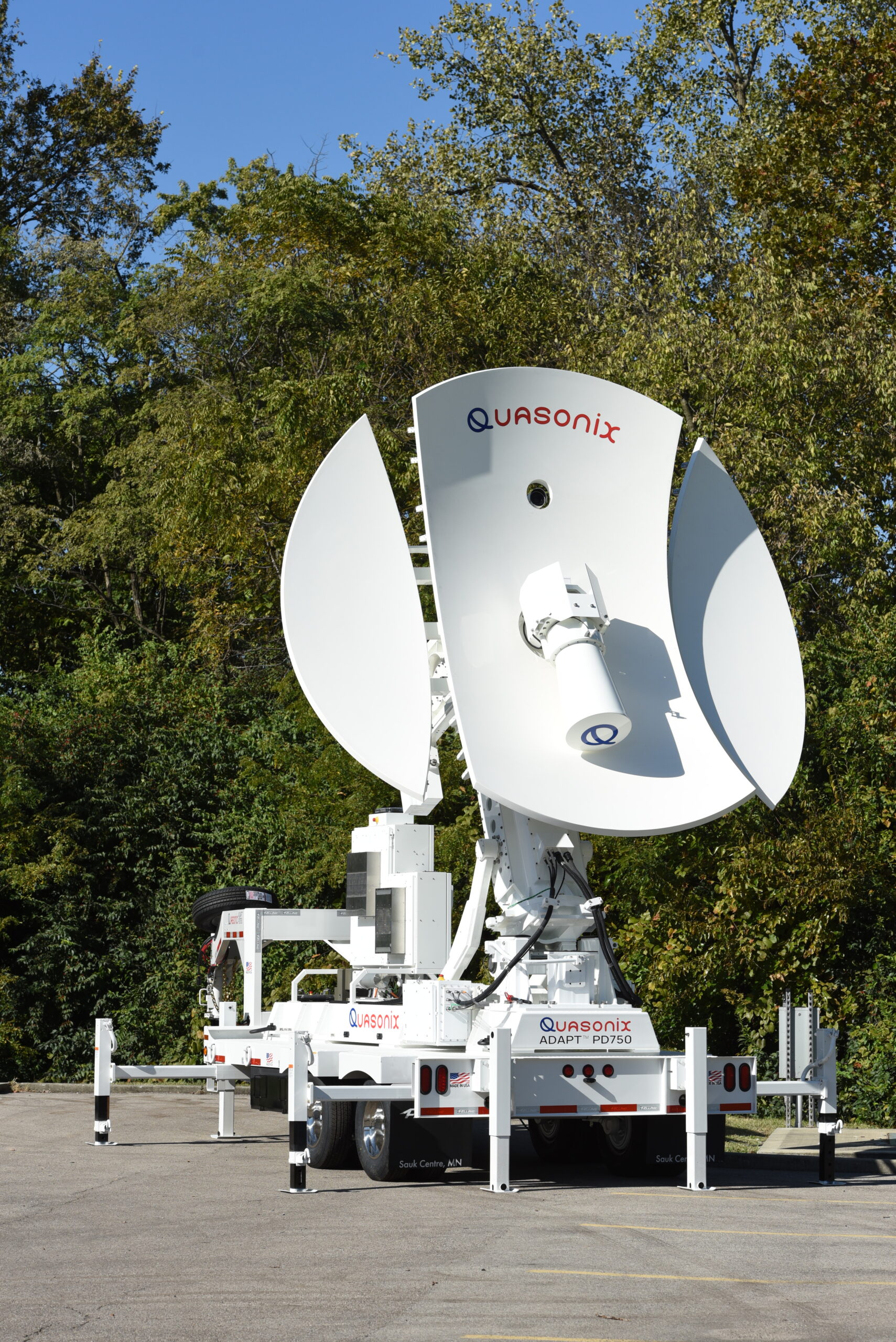

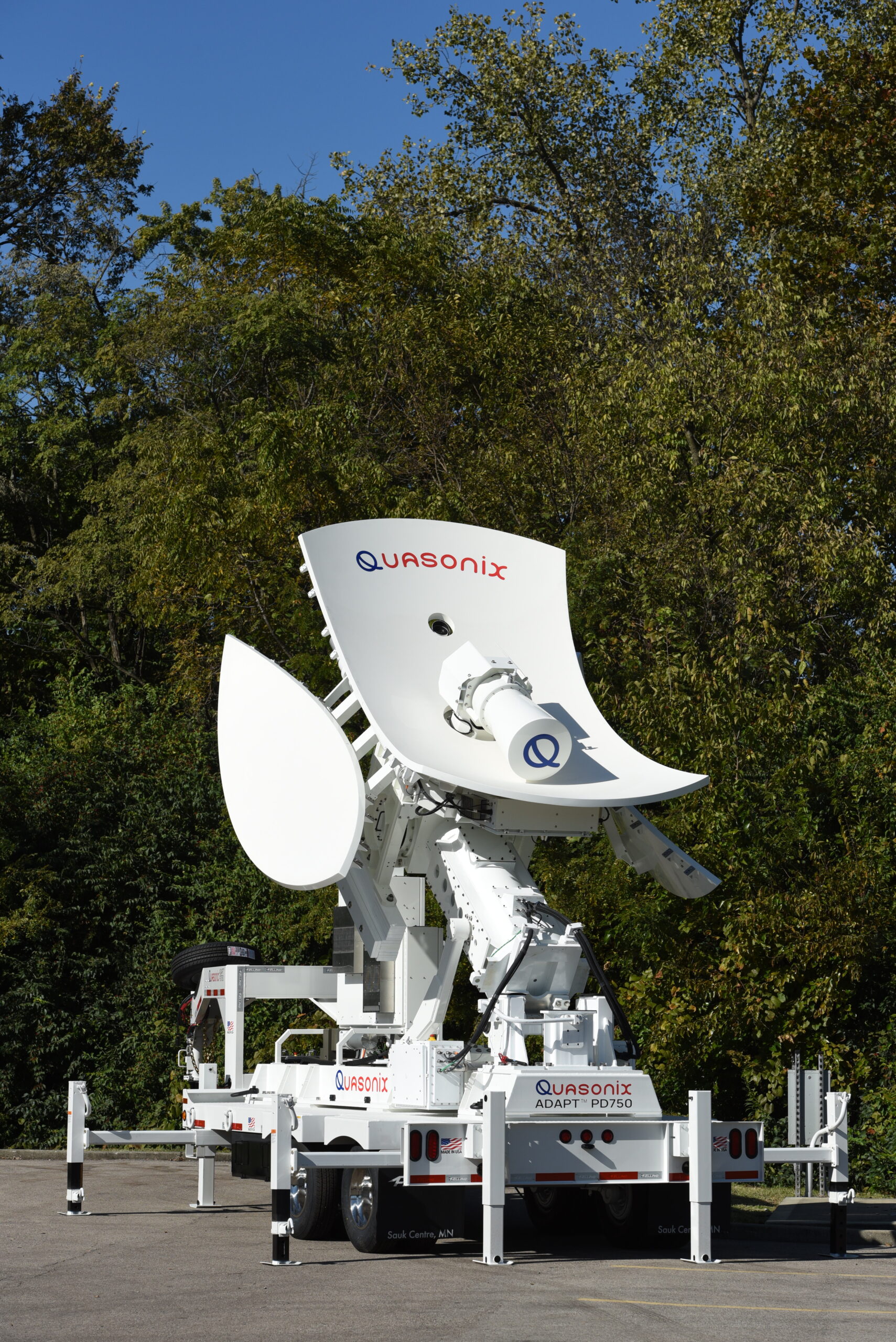

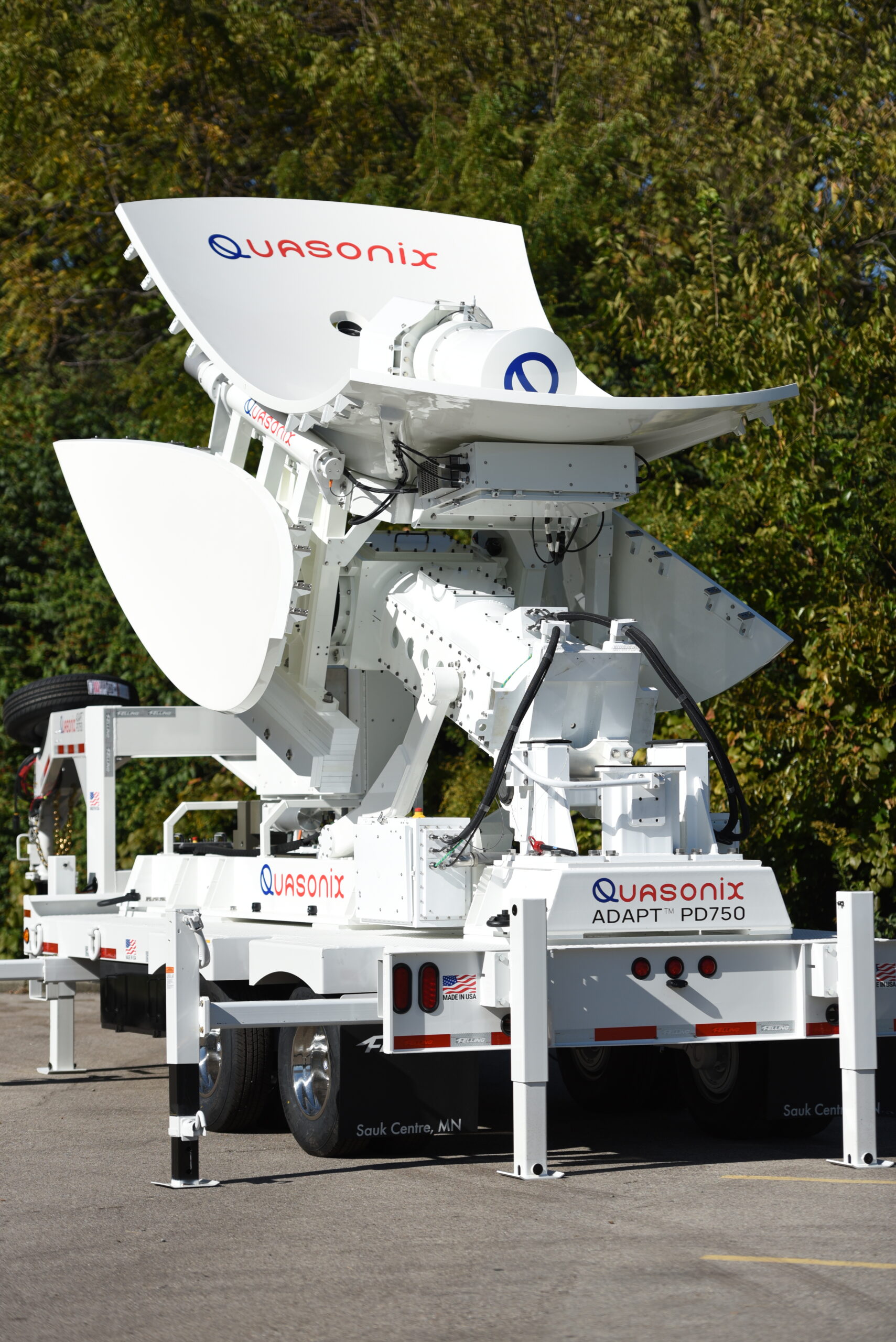

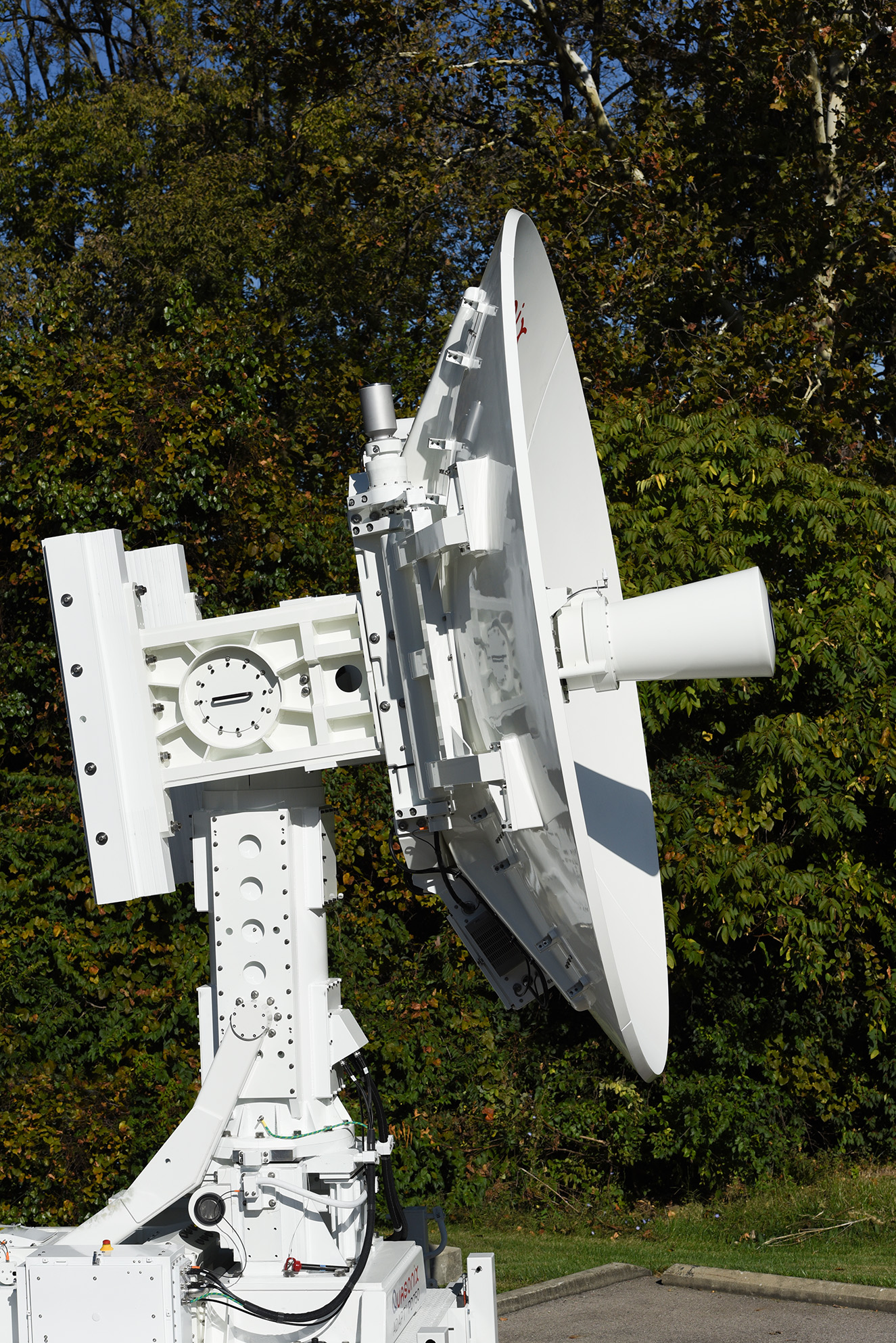

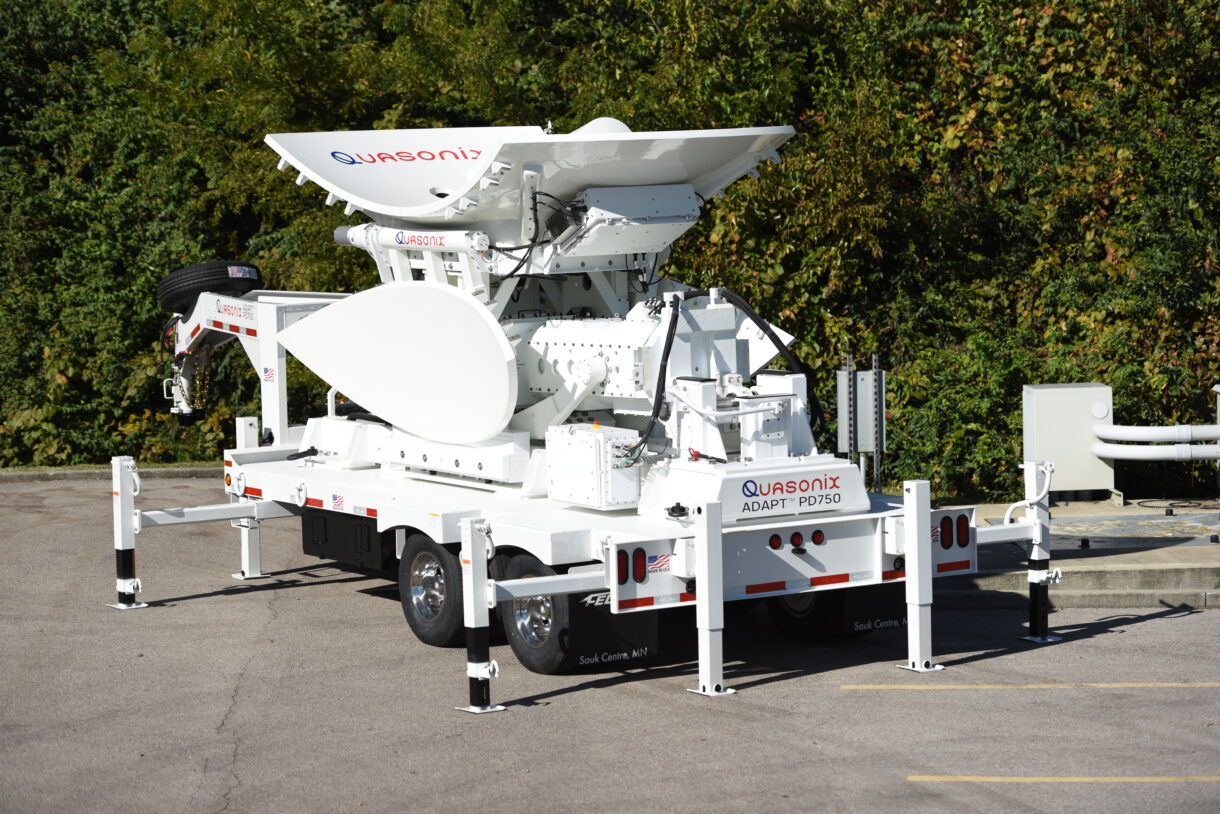

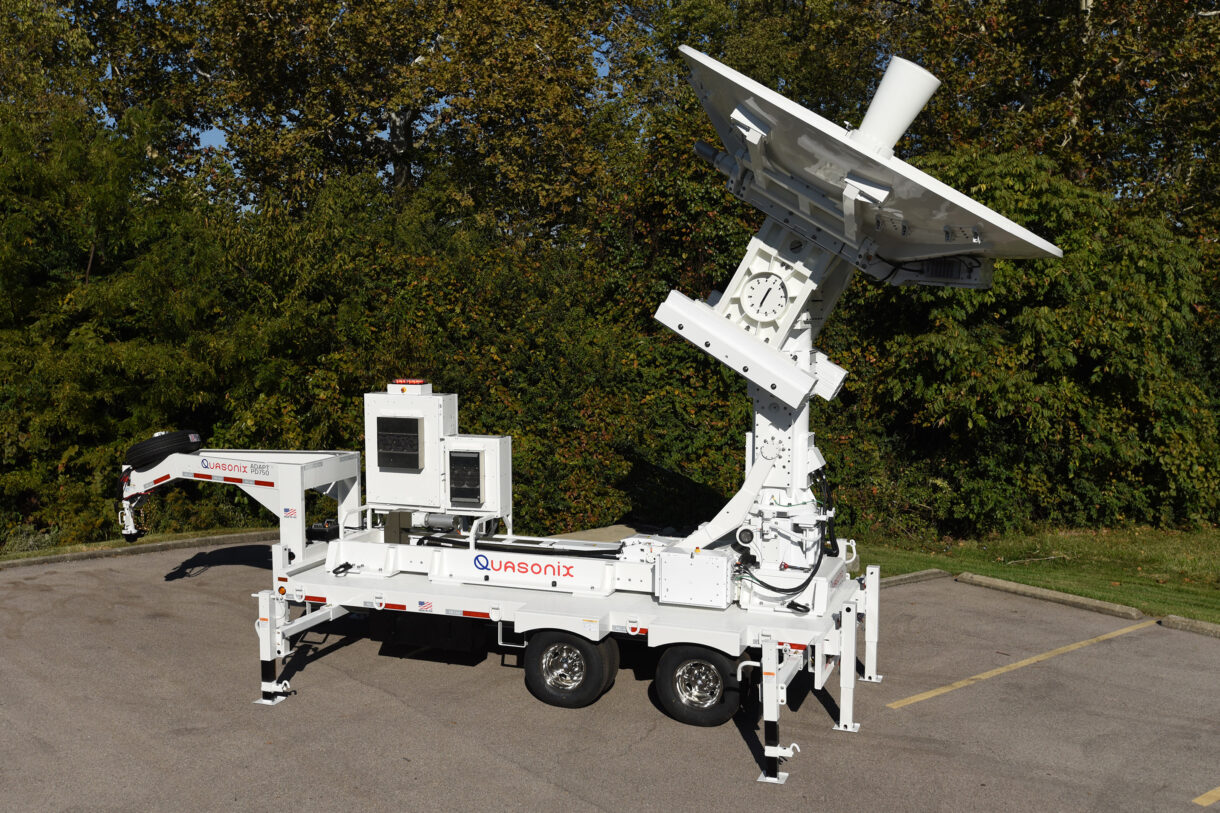

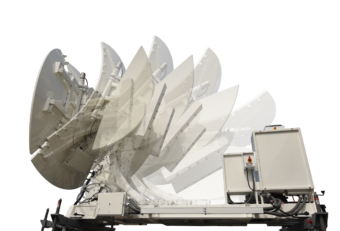

ADAPT™ PD750 Auto-Deployable HyperTrack™ Antenna
Its 12 ft (3.7 m) portable reflector is ready to capture data wherever your mission takes you.

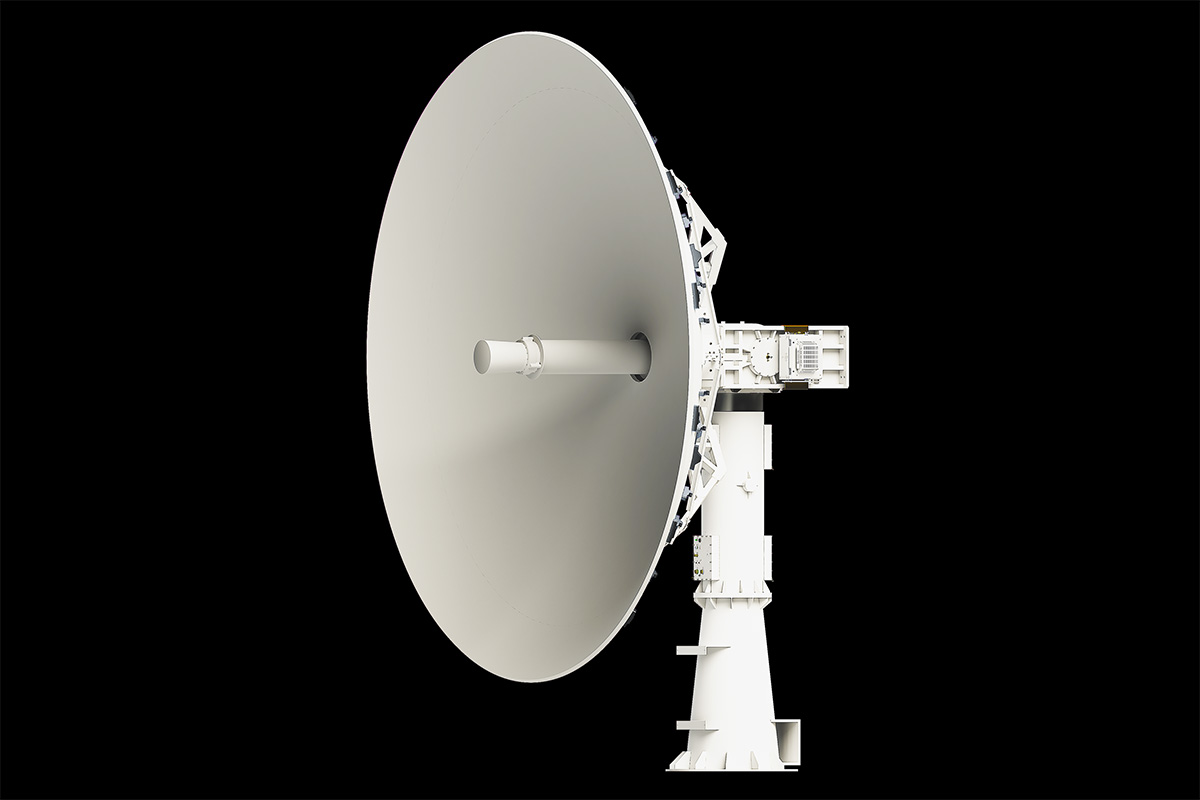

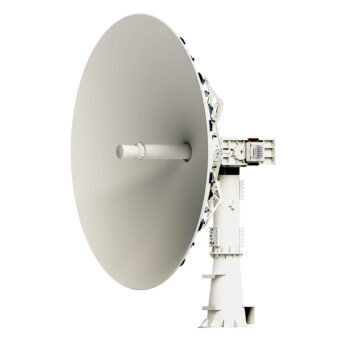

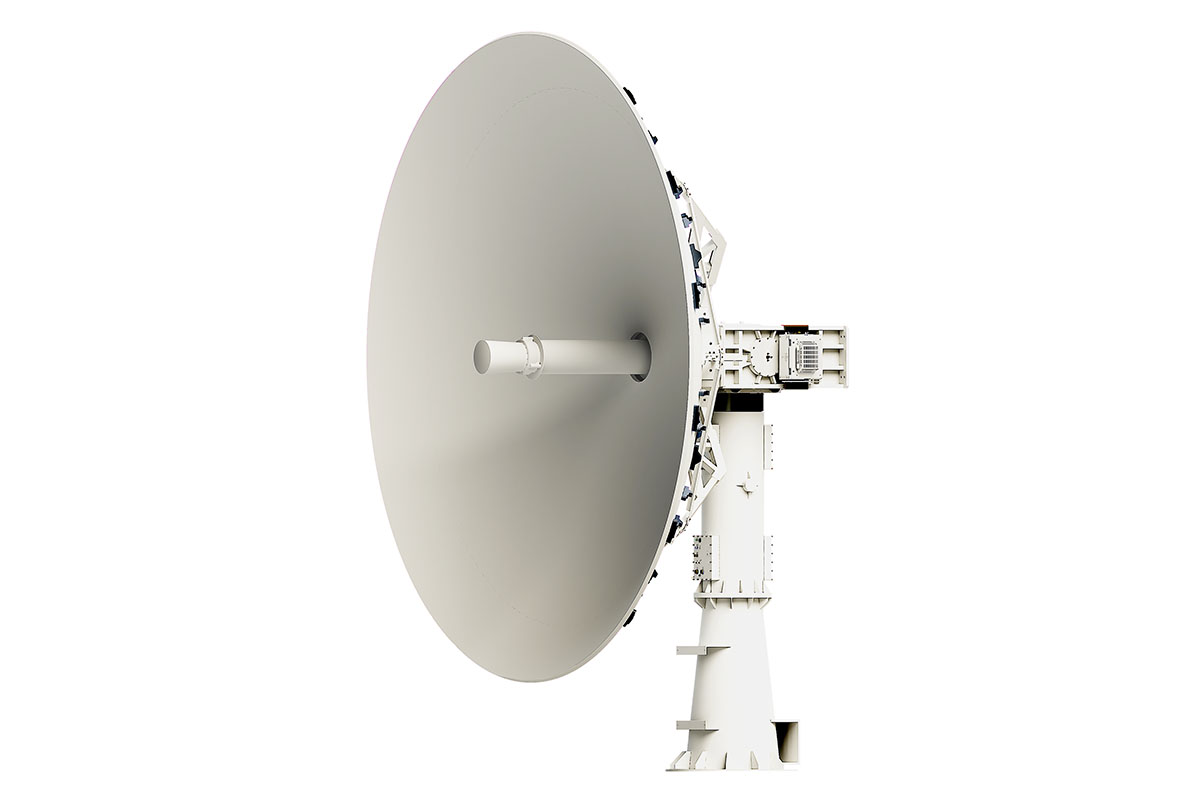

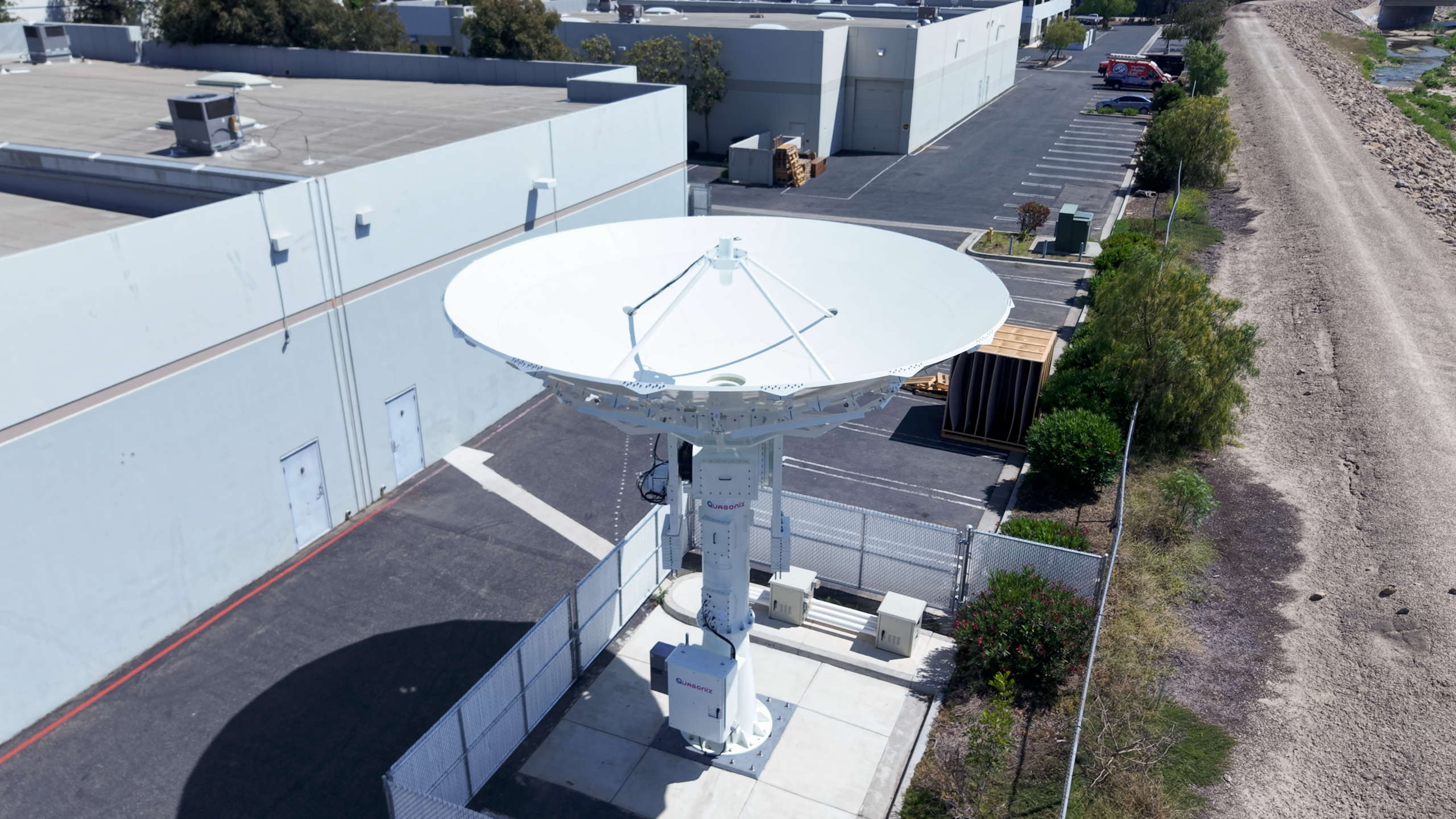

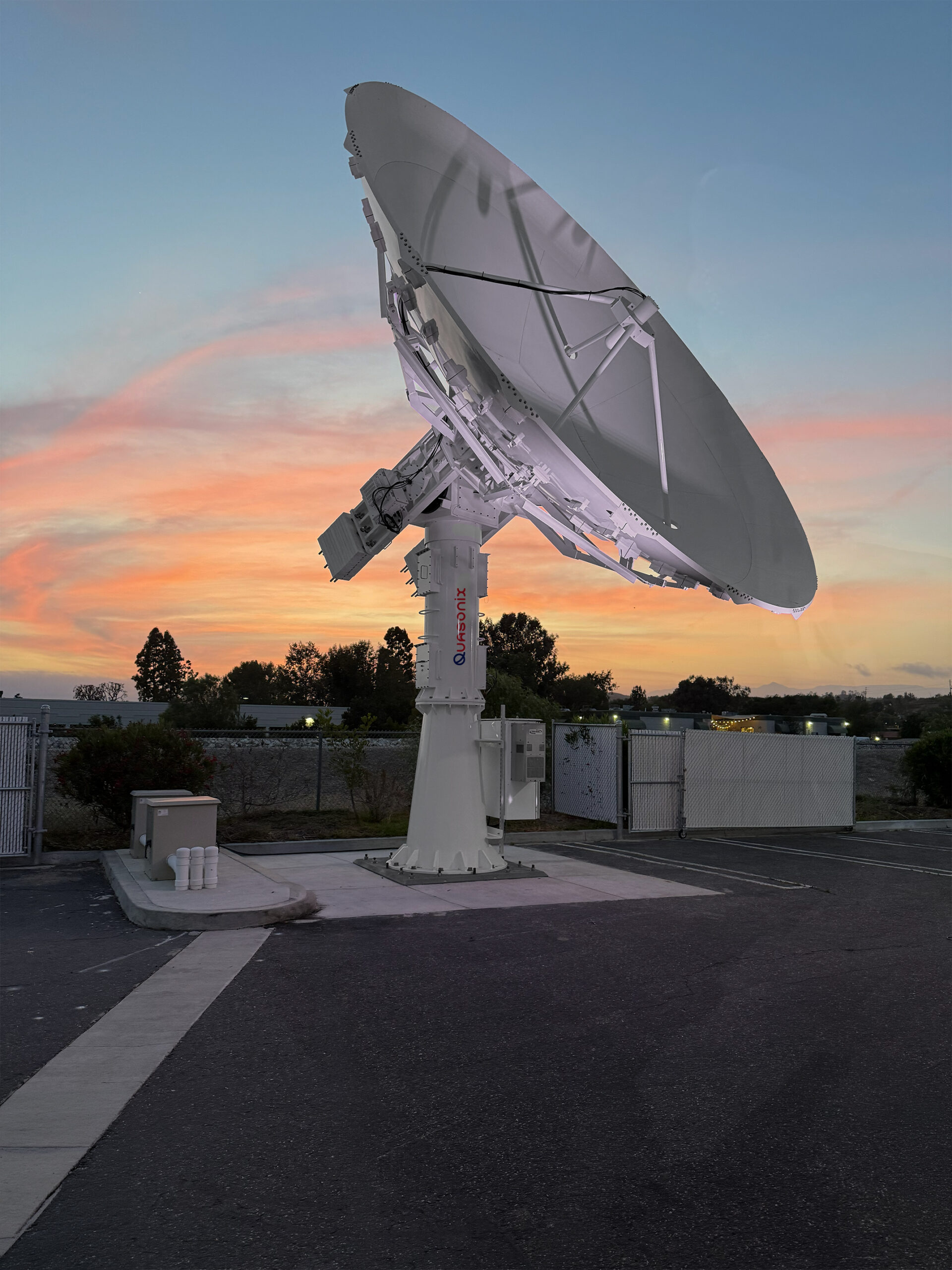

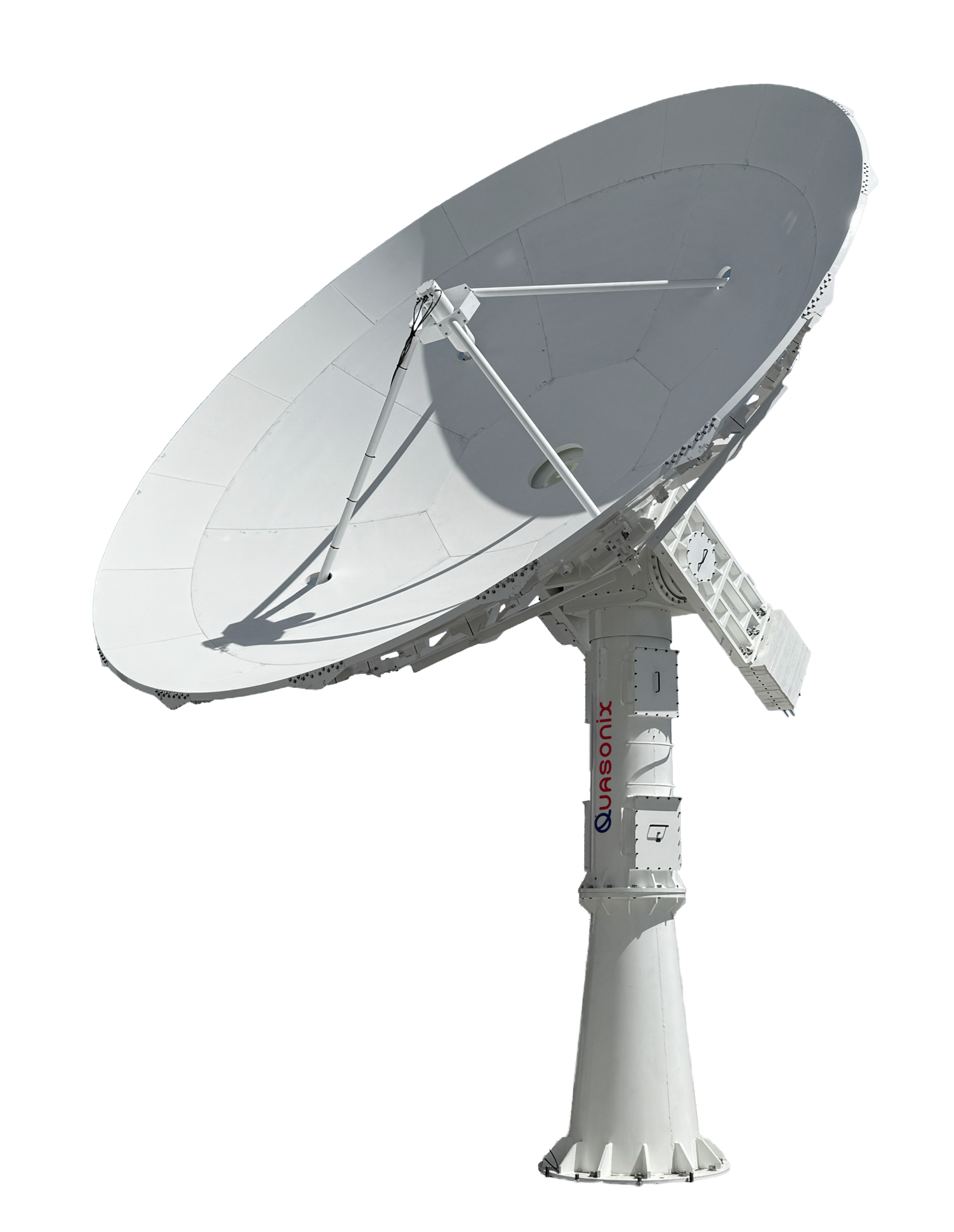

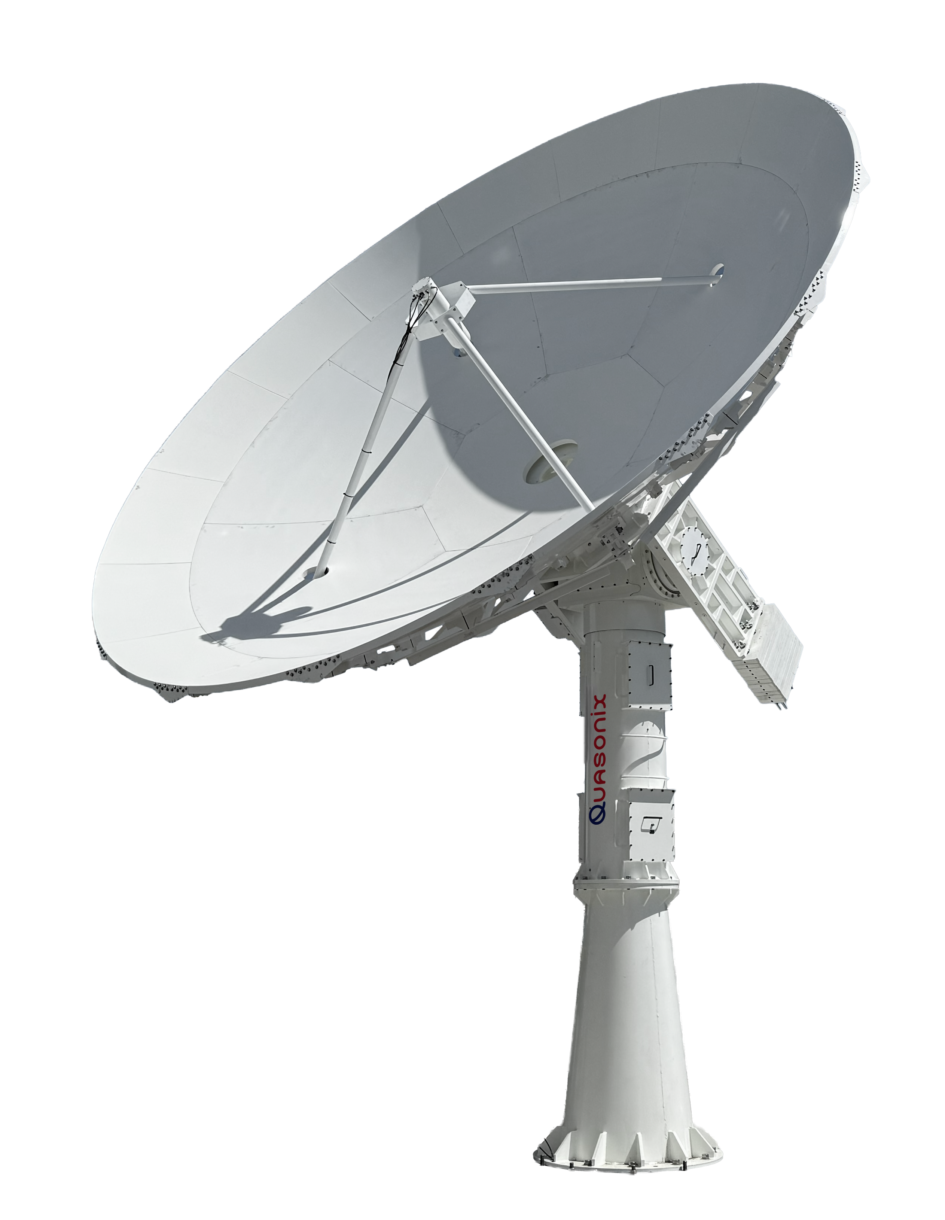

PD900 Series 24 ft (7.3 m) HyperTrack™ Antennas
These large-aperture telemetry antennas are built for sustained precision, smooth motion, and extreme duty cycles.
Learn more
Track with Unrivaled Precision
FPGA-based real-time HyperTrack™ control eliminates tracking jitter and lag, outperforming legacy control systems without exception. Plano-centric drive systems deliver positioning accuracy and repeatability to 0.01 degrees.
View datasheet
Ace the Test of Time

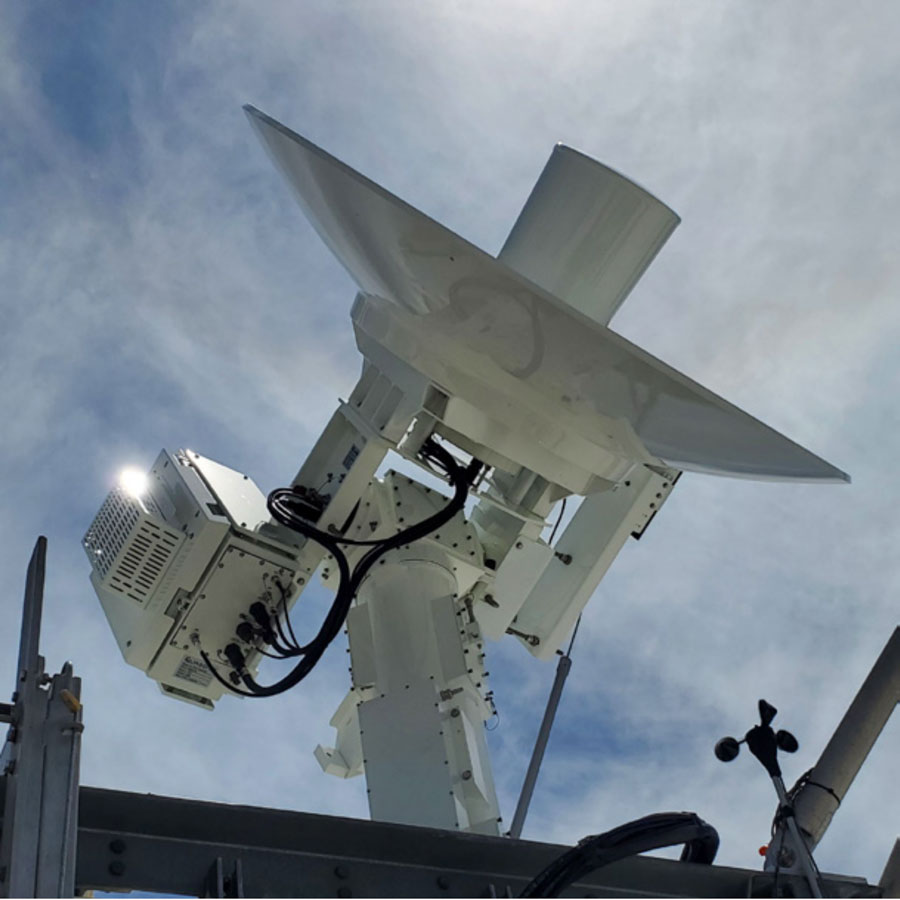

Our pedestals are built with weatherproof housings, military-grade slip rings, industrial temperature-rated electronics, and technology used in robotics, which requires 24-hours, 7-days-a-week precision positioning with 98% uptime.
View datasheet
Get More Than Just Hardware

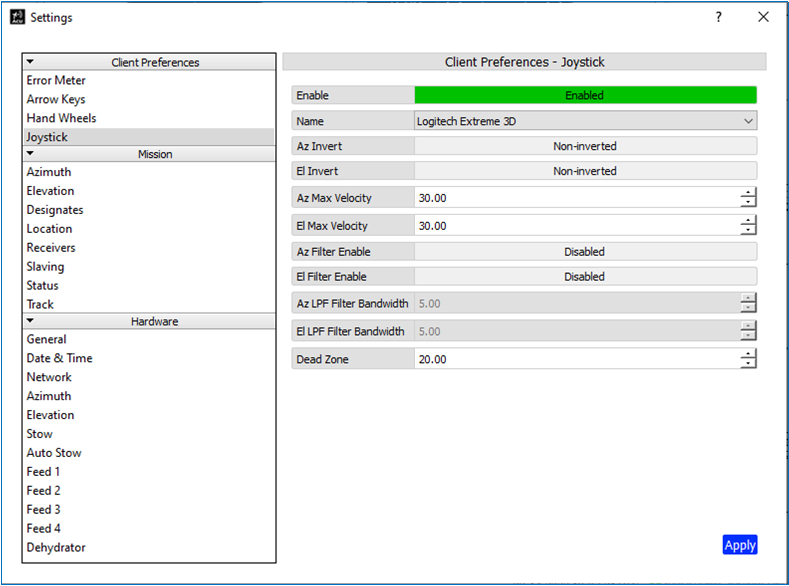

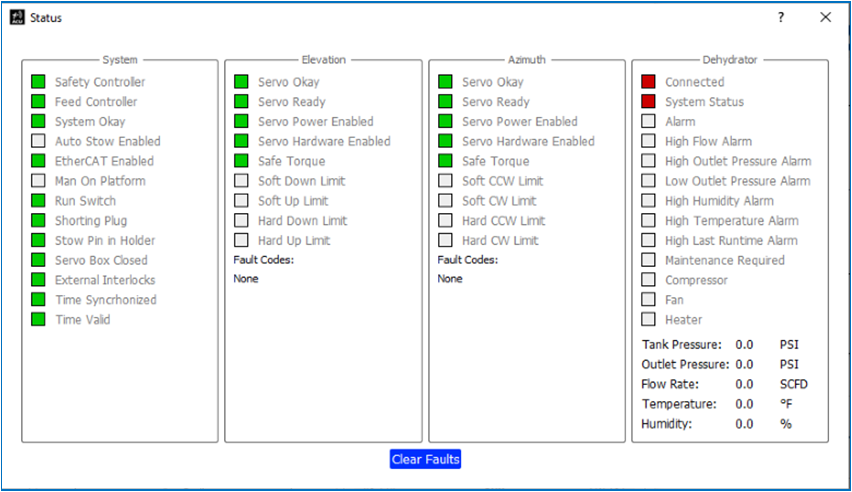

From 3 to 24 feet, every HyperTrack system is controlled by a modern interface that puts precision at your fingertips, and each system is backed by a three-year hardware warranty, lifetime software updates, and lifetime customer support.
View datasheet
Documents
PD Series™ Telemetry Antenna Datasheet
L/S/C-band tracking antennas with 3- to 24-foot reflectors, built on FPGA-based HyperTrack™ control and robotics-grade drives in sealed, pressurized pedestals. Includes a side-by-side comparison of five pedestals, PD300 to PD900. Every system comes with lifetime software updates and a three-year hardware warranty.
6.30 MB
Precision Drive™ HyperTrack™ Antenna Periodic Maintenance Log
Instructions necessary for monthly inspection, preventive and corrective maintenance, and alignment of the antenna system in accordance with warranty requirements. This form/log is to be executed monthly and sent to Quasonix to maintain the warranty agreement.
158.53 KB
HyperTrack™ Software Manual
Instructions for safely operating the Quasonix HyperTrack™ precision PD Series positioner, focusing on the local and browser-based user interfaces.
1.0
Antenna Control Unit Manual (Legacy)
Installation, setup, and use of the Antenna Control Unit (ACU) Graphical User Interface (GUI), for controlling Quasonix pedestal and portable telemetry antennas. Software Version 0.10.38. For Legacy (non-HyperTrack) systems.
1.5.2
HyperTrack™ Antenna Local Control Pendant Manual
Installation, operation, and troubleshooting of the HyperTrack™ Local Control Pendant, used to manually control motion of the azimuth and elevation axes of the HyperTrack™ Antenna System Pedestal.
2.0.1
HyperTrack™ Antenna Firmware Disk Image
This zipped download includes the HyperTrack™ firmware disk image (.img) and the corresponding release notes (.txt).
1.3.2
153 MB
HyperTrack™ Antenna Client Installer Package
This zipped download includes the HyperTrack™ client installer package (.msi) and the corresponding release notes (.txt).
1.3.2
22 MB

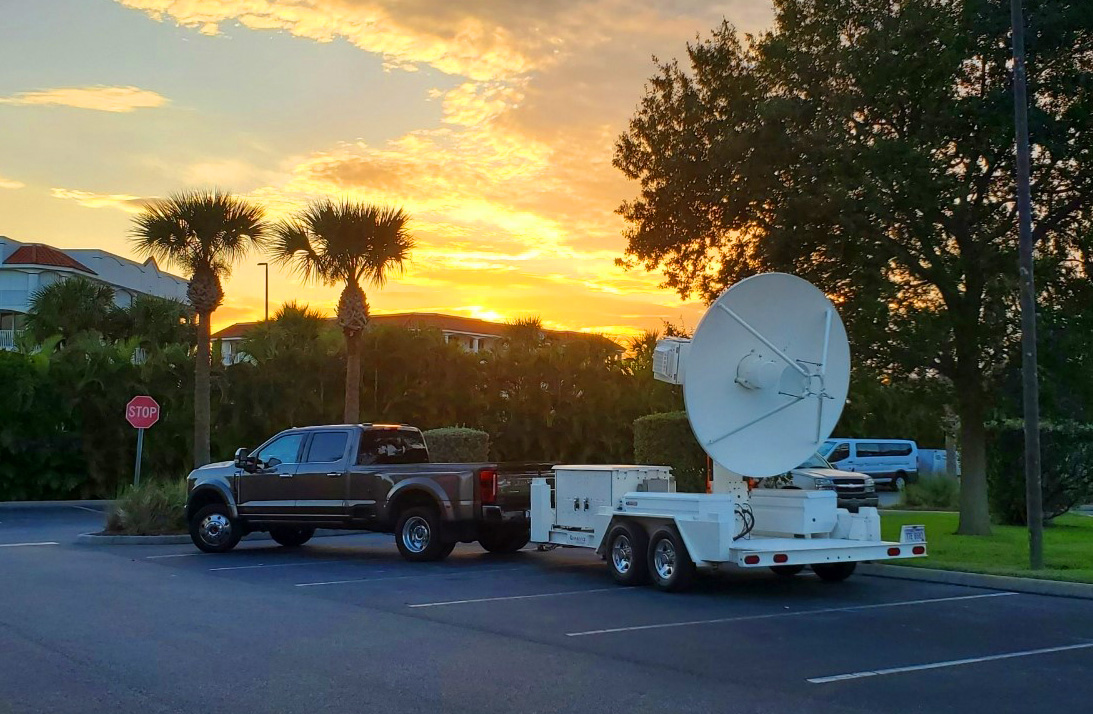

Transportable Antennas Slideshow
Quasonix antennas are going places, through innovative engineering that allows for greater size, mobility, and utility, while maintaining extended durability and jitter-free precision tracking. This slideshow gives you a taste of the ways we are responding to customers’ needs. You CAN take it with you.
Custom Portable Antenna Enclosure
An example of a custom portable enclosure manufactured by Quasonix. Take a closer look inside this mobile, full-featured PD450 tracking system, which includes a retractable roof, hydraulic scissor lift, and interior control center.

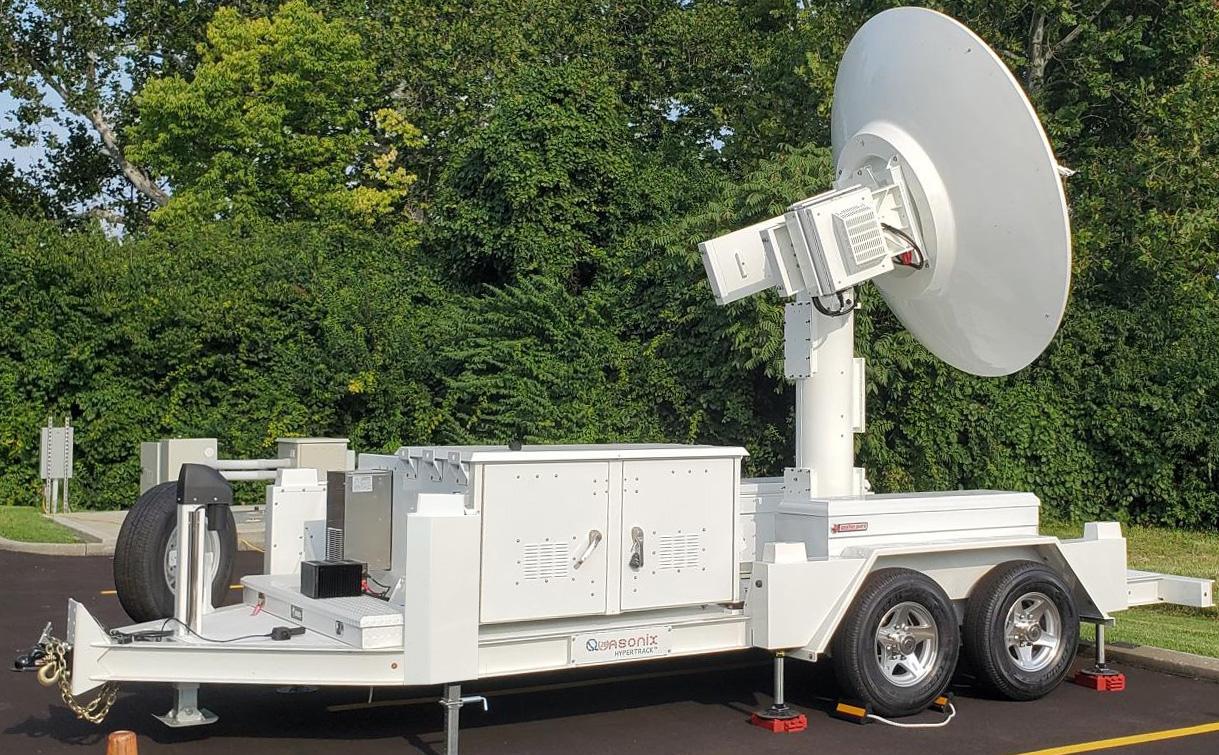

Trailered PD450 Drone-Tracking Demonstration
Using a 6-foot dish with a PD450 pedestal mounted to a trailer, we auto-track a drone, with near-perfect results. Filmed in California, this video highlights some of the key features of our antennas and the limitless potential of Quasonix’s full product line.

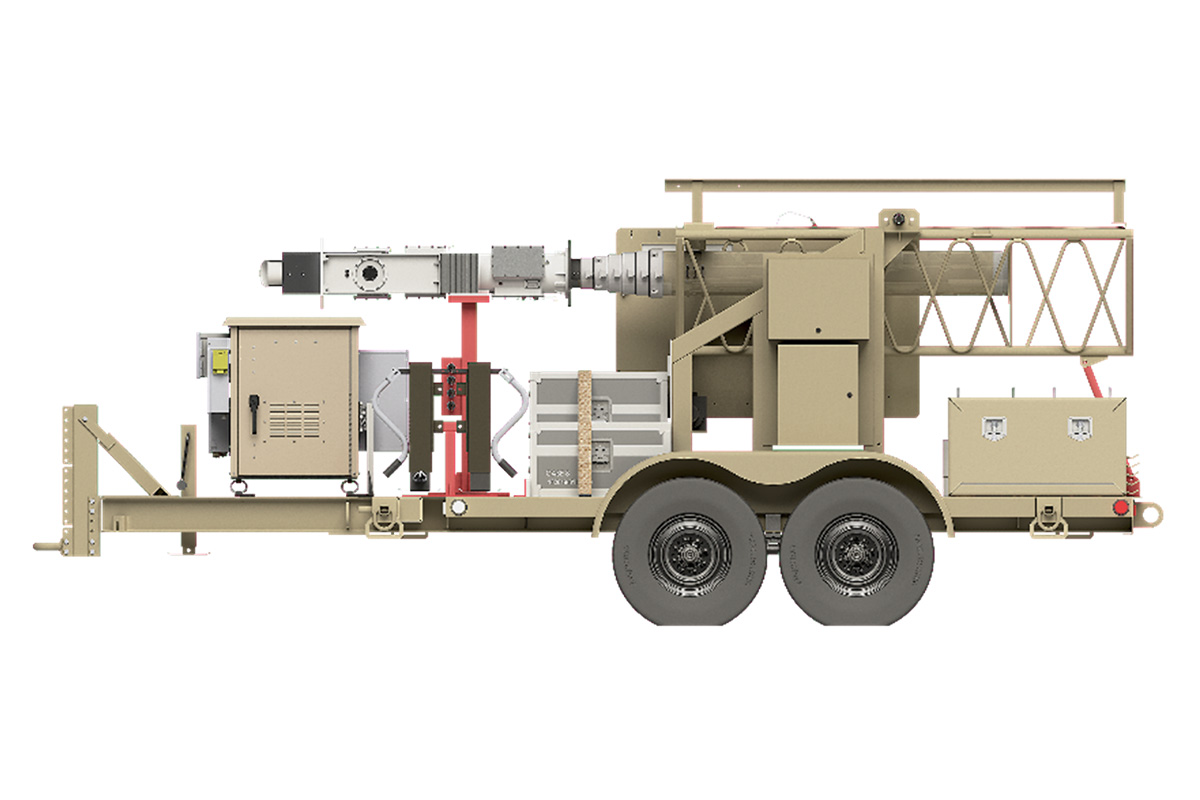

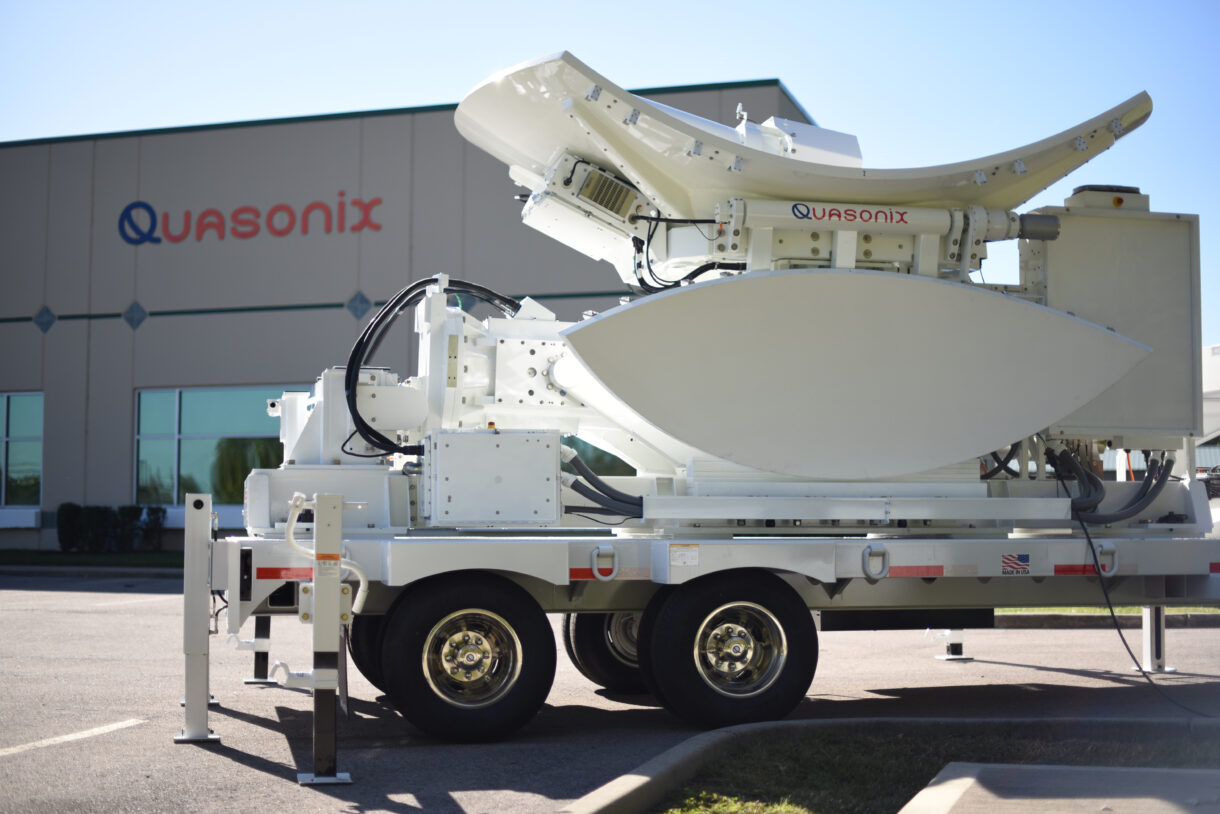

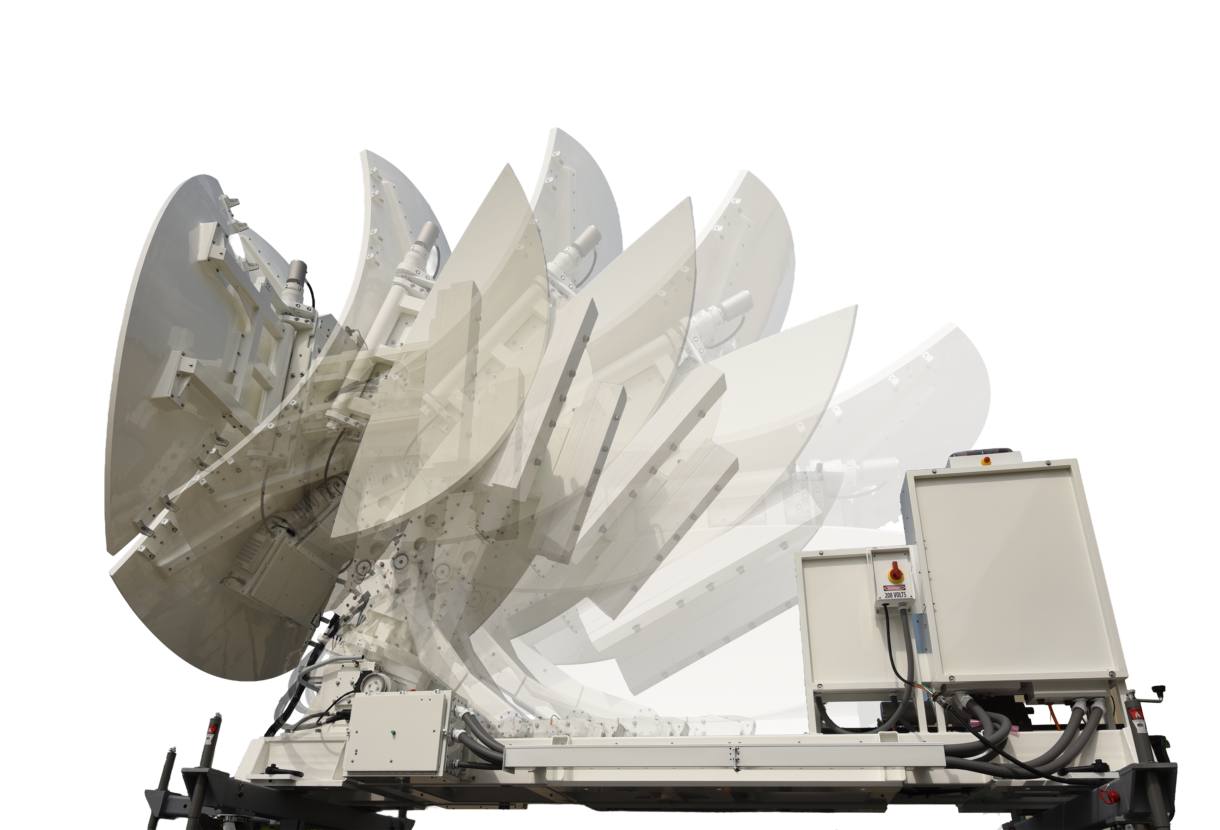

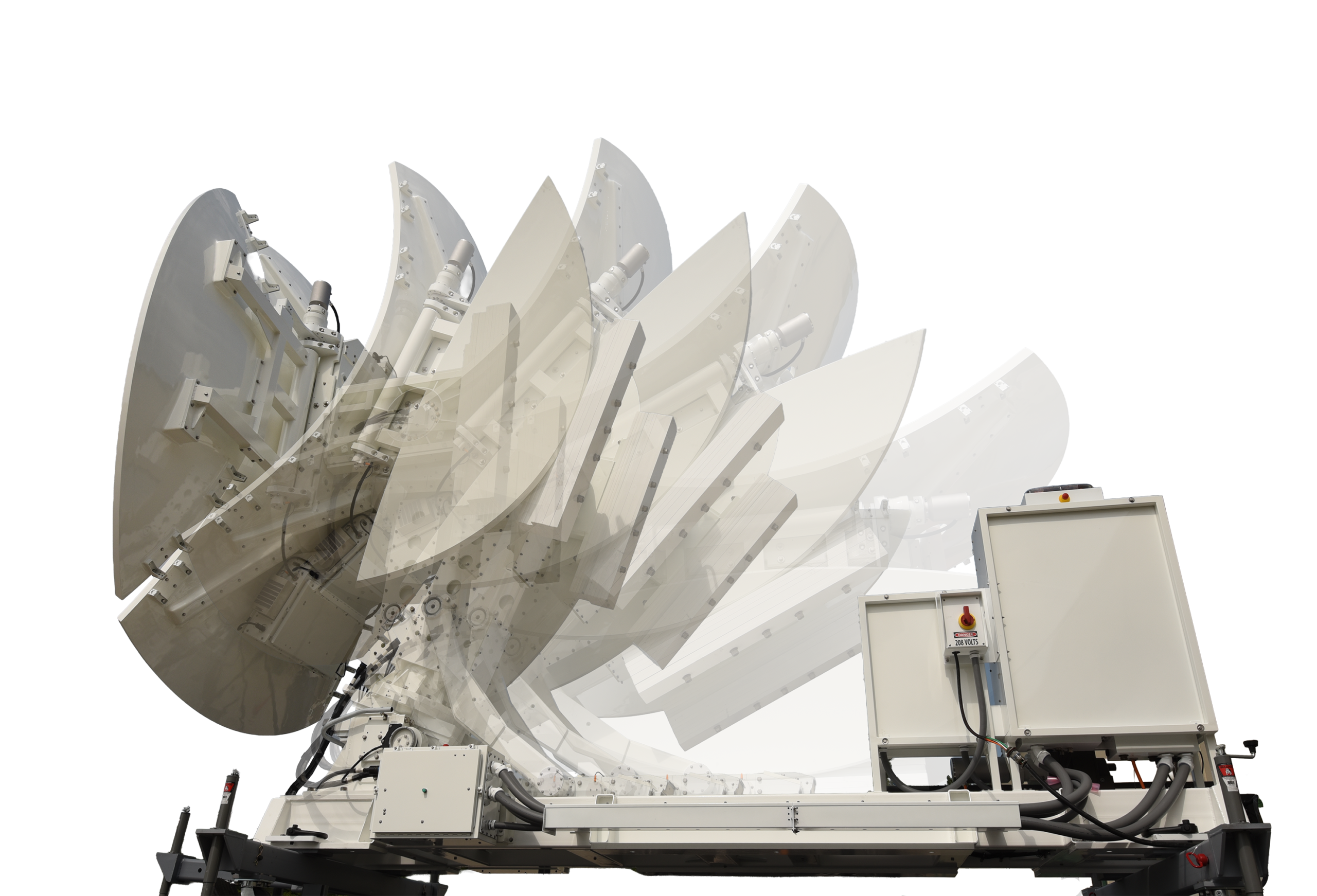

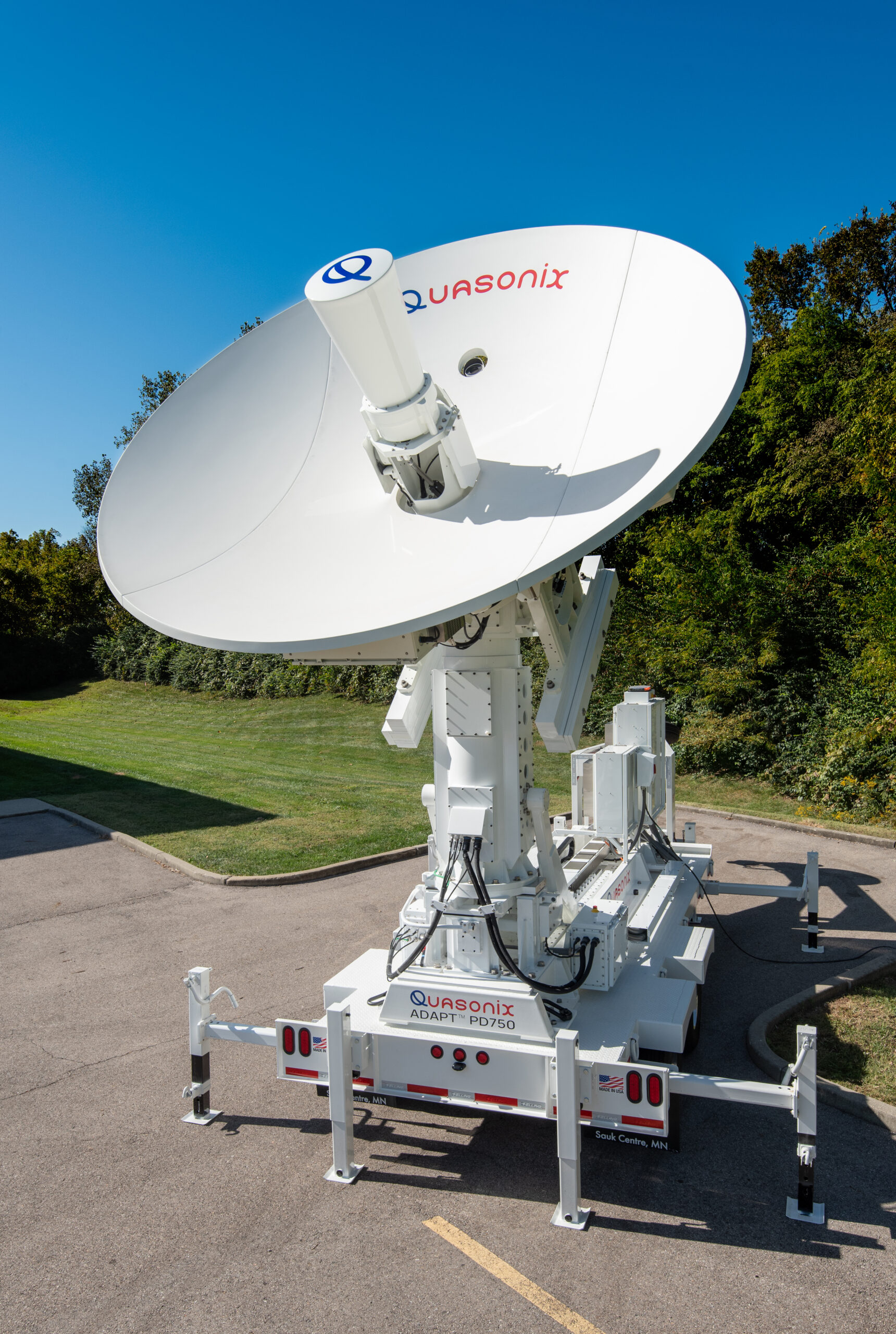

ADAPT™ PD750 Antenna, From Stored to Deployed
This animation shows the ADAPT™ PD750 Antenna auto-deploying, from its stored to deployed state. This groundbreaking system gives you our best-in-class HyperTrack™ data acquisition in a portable 12-foot (3.7-meter) reflector size with fast and effortless setup, for the ultimate in mission readiness anywhere in the world.
