Fix Your Fixed Antennas

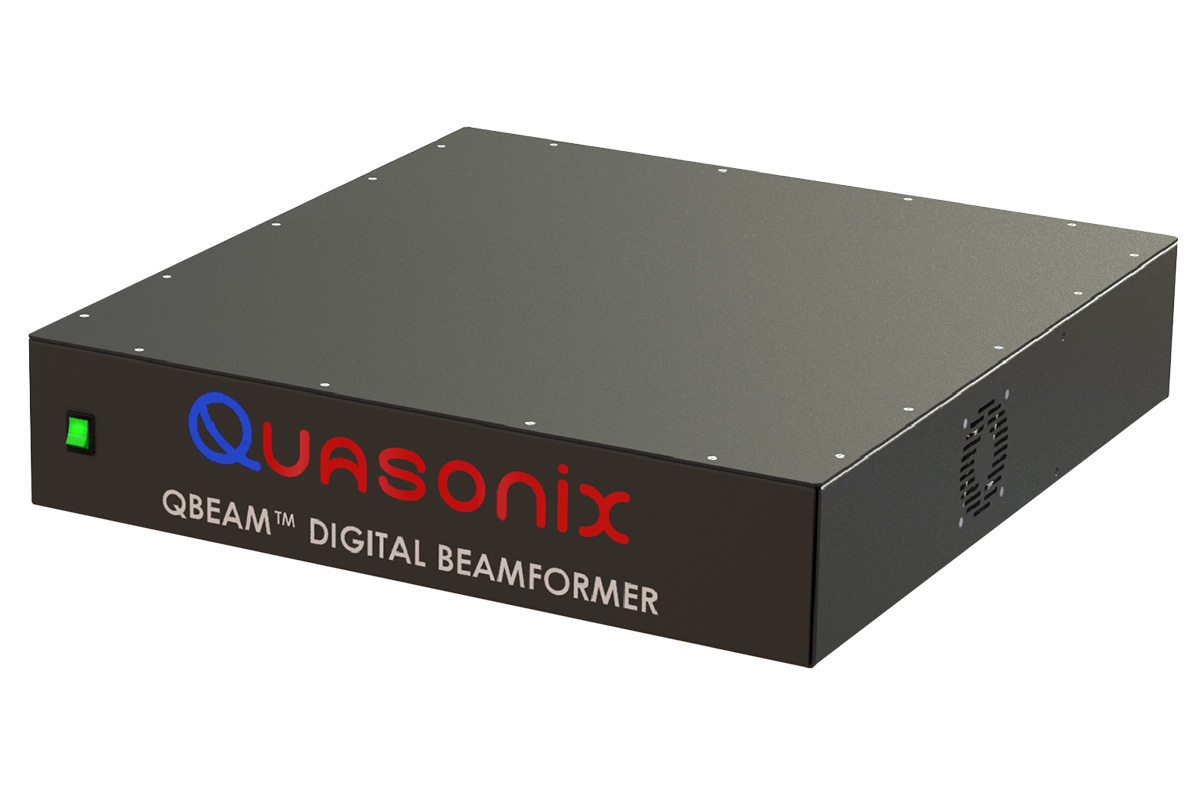

Just mount your antennas where they can see the target. The QBeam™ digital beamformer takes care of the rest, automatically “pointing” receive antennas for best signal reception without physically moving any antenna element. The possibilities are endless.
Achieve Peak Signal-Chain Performance
Pair QBeam Digital Signal Processors (DSPs) with Quasonix QPatch™ Antennas and RDMS receivers to maximize noise rejection, signal fidelity, and end-to-end telemetry performance.
View datasheet
Make the Most of Existing Antennas

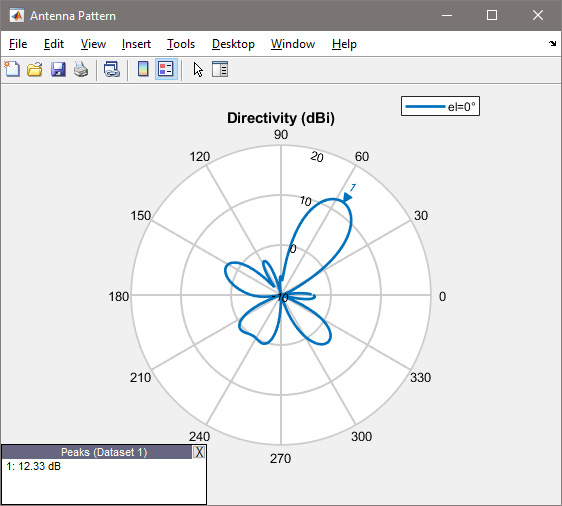

No mechanical steering required; the antenna beam is electronically steered to maximize signal-to-noise ratio and to minimize distortion. Acquisition is extremely rapid, comparable to best-in-class demodulators, orders of magnitude faster than mechanically steered antennas.
View datasheet
Scale for Future Array Growth

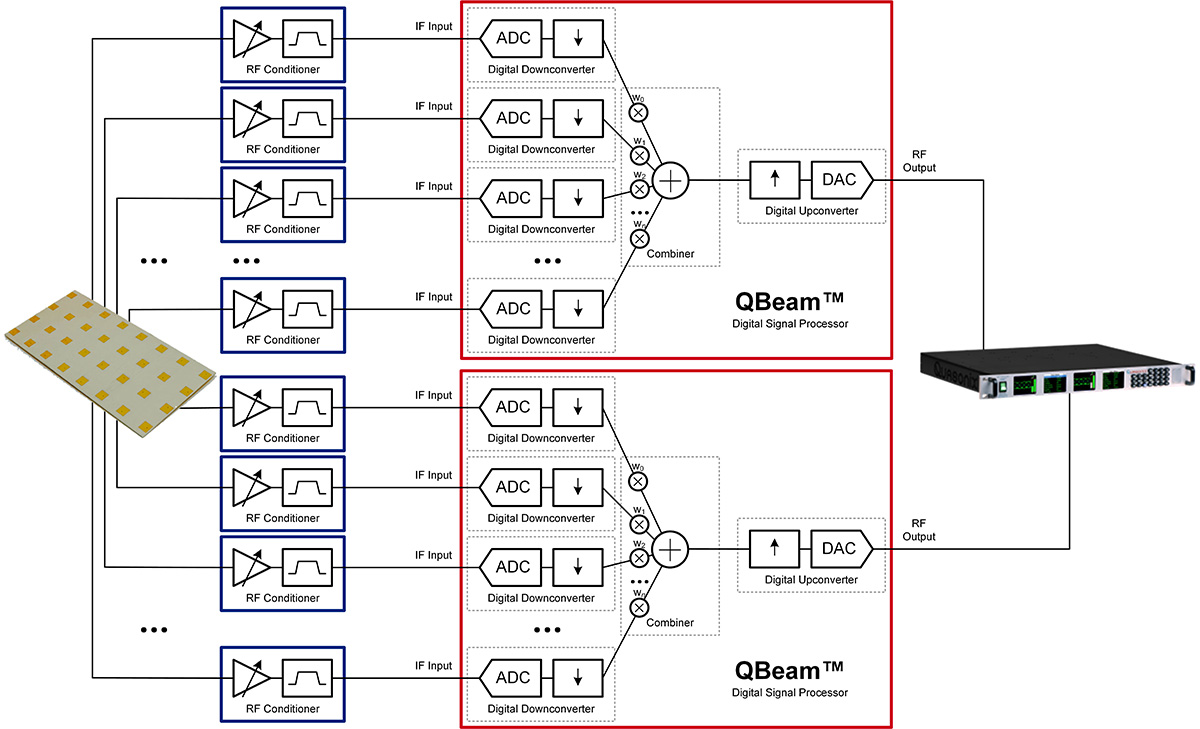

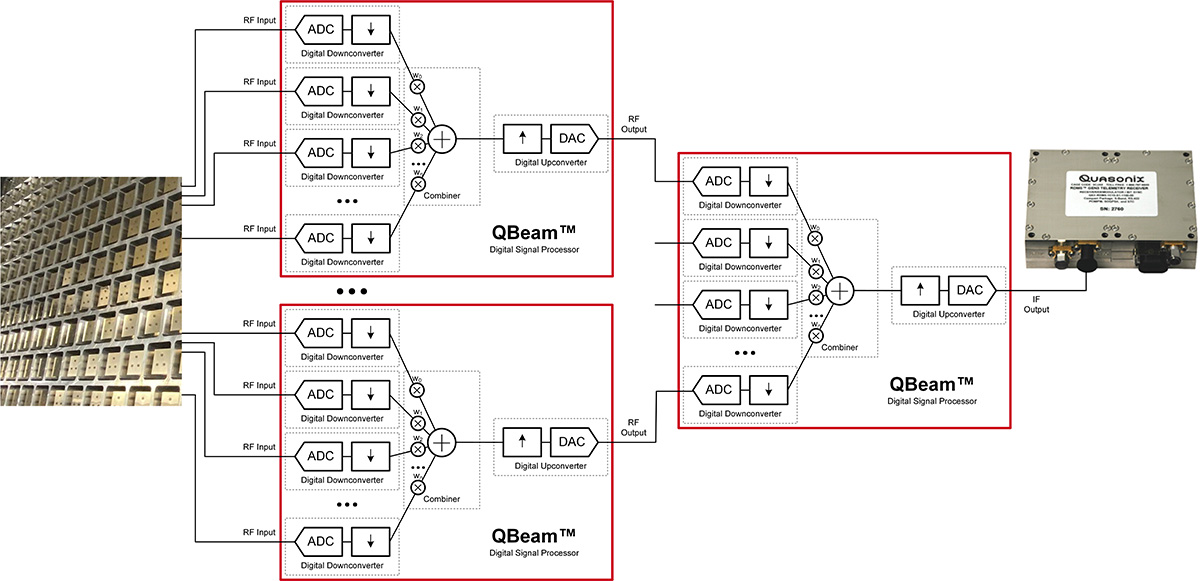

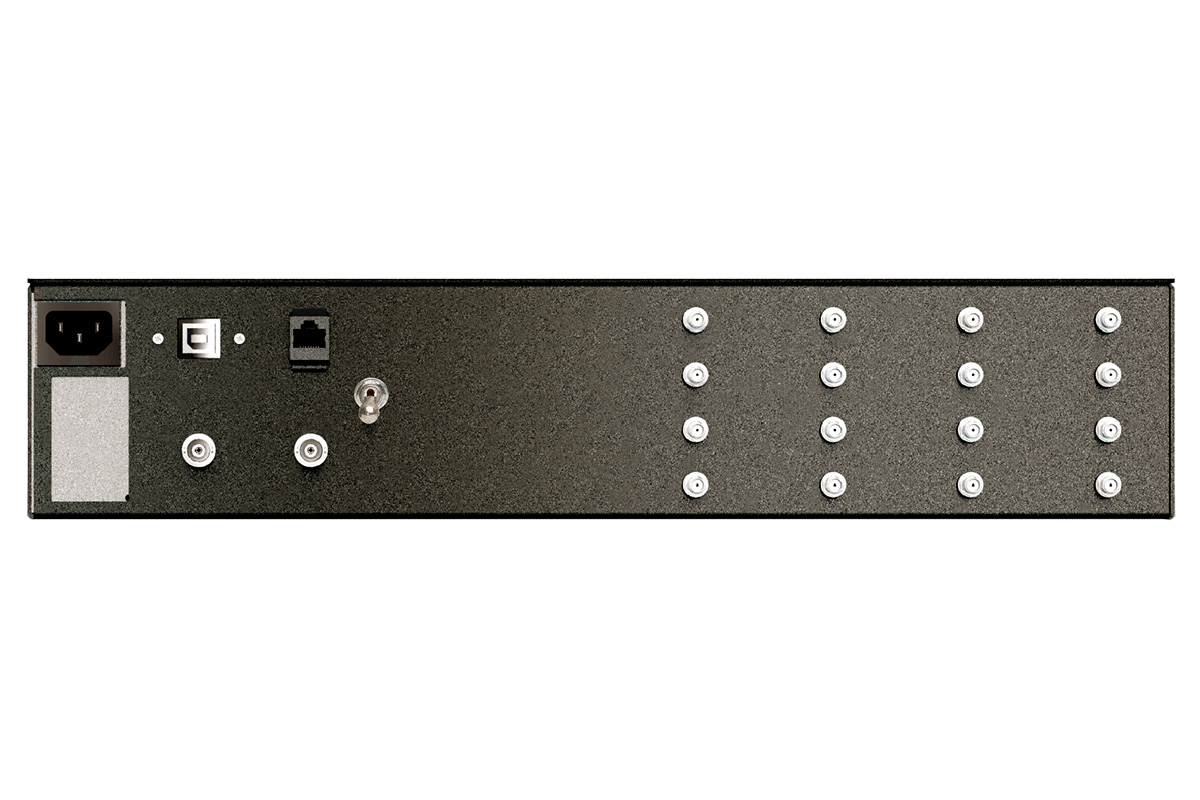

Each QBeam DSP module can accommodate up to 16 wideband RF inputs. Multiple QBeams may be cascaded to support larger antenna arrays or fed into dual-channel receivers for a final stage of combining.
View datasheet
Documents
QBeam™ Digital Beamformer Datasheet

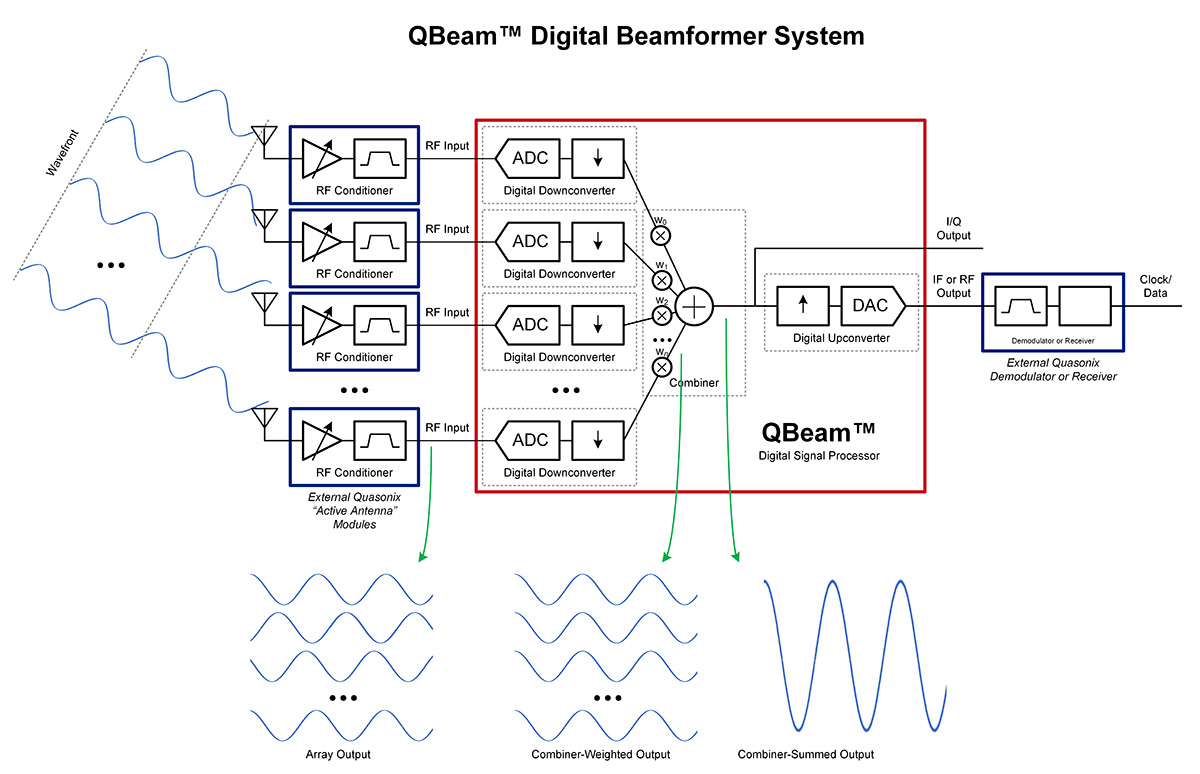

Description of how QBeam™ beamforming works, features of the Digital Signal Processor (DSP), typical system setup, and advanced capabilities.
1.91 MB
