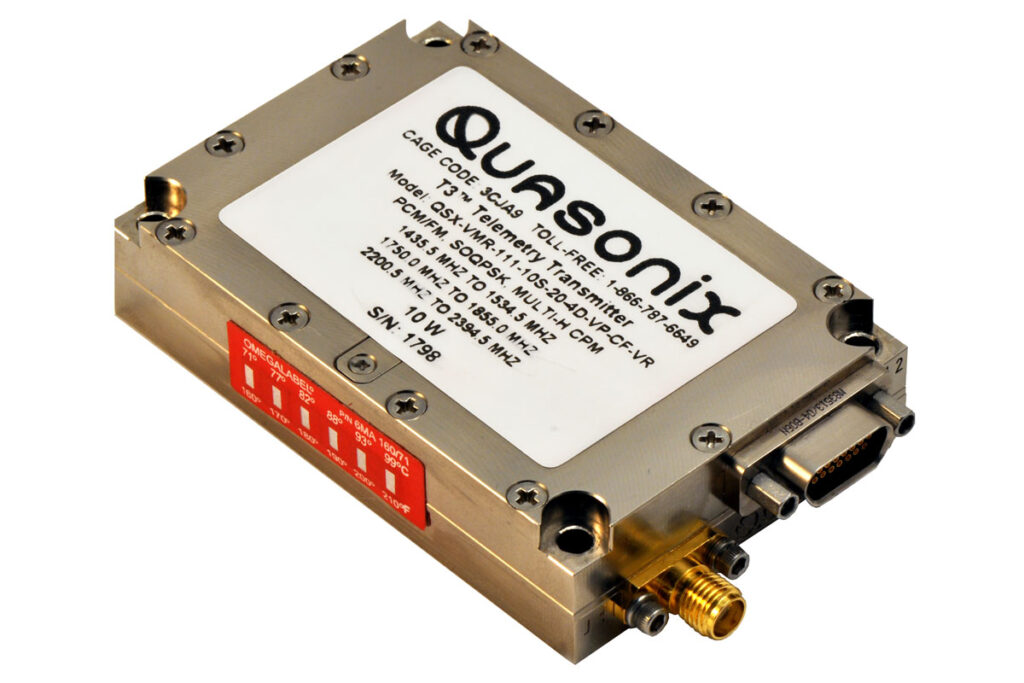

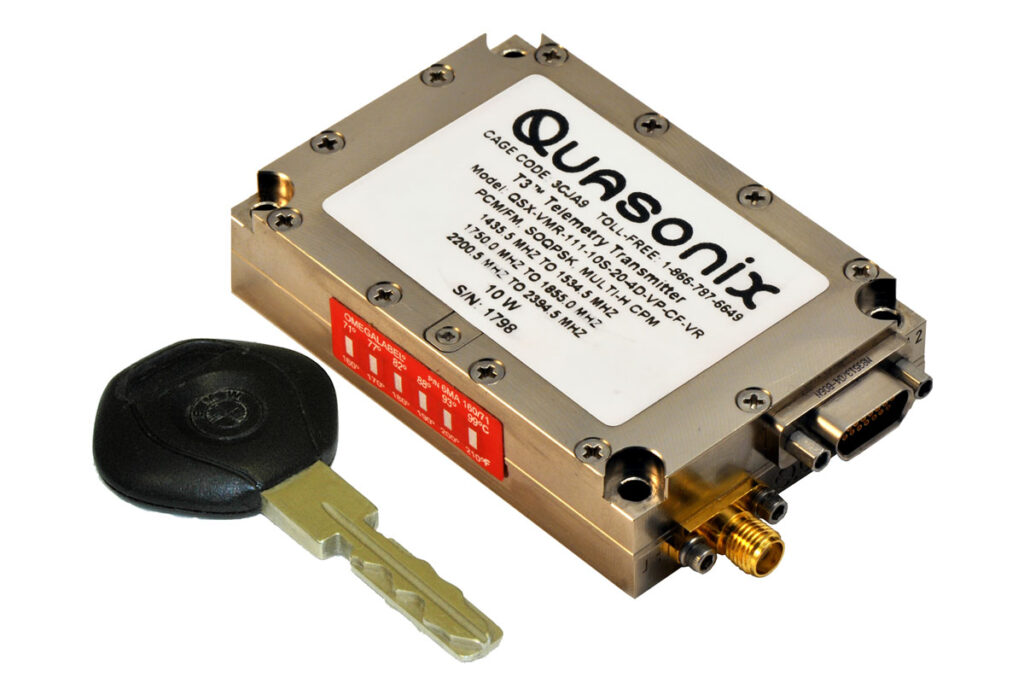

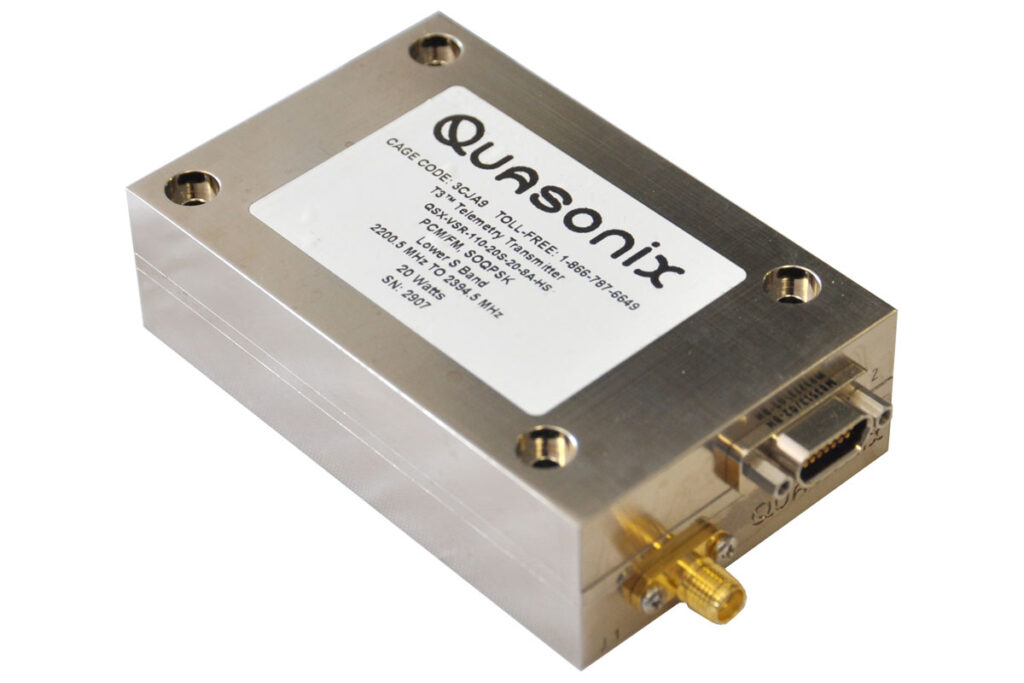

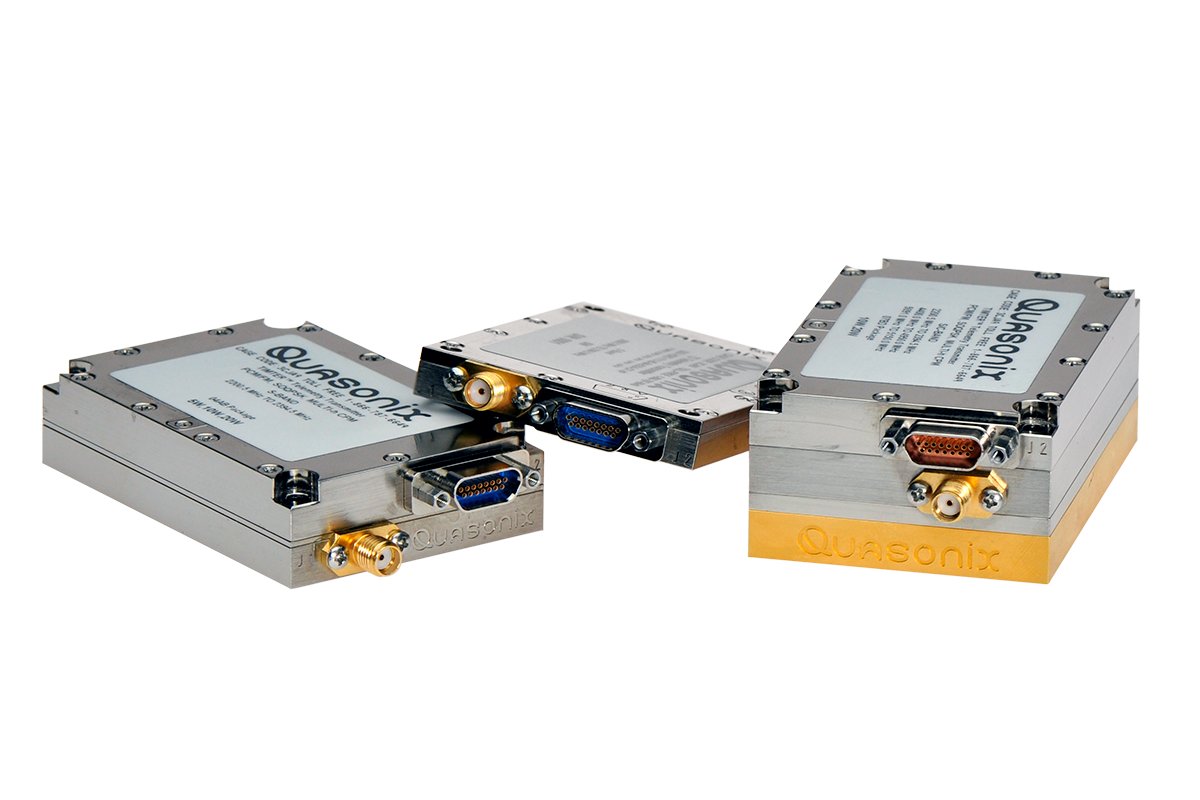

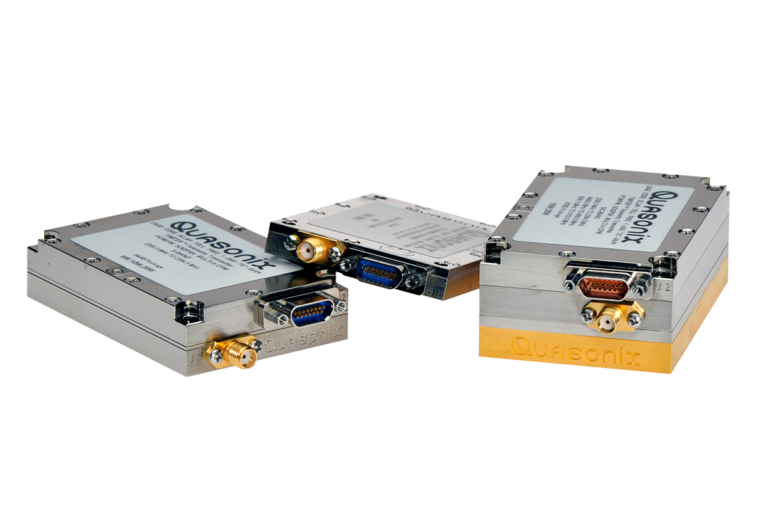

TIMTER™ Transmitters

Fourth-Generation Powerhouse

Quasonix digital multi-mode telemetry transmitters are the benchmark of the industry, providing unparalleled performance and value in small, robust, power-efficient packages. We offer proven quality, with over 17,000 transmitters shipped.

Take Your Telemetry to the Next Level—Even the Moon

Take Your Telemetry to the Next Level—Even the Moon

A Quasonix TIMTER transmitter supported the first U.S. soft lunar landing in over 50 years, demonstrating outstanding efficiency and performance under extreme conditions.
View datasheet
Upgrade to the Industry’s Preferred Transmitter

Upgrade to the Industry’s Preferred Transmitter

Quasonix fourth-generation transmitters take the industry standard to the next level with higher efficiency, better cooling, lower phase noise, lower harmonics, and more.
View datasheet
Power Up with Exceptional Efficiency

Power Up with Exceptional Efficiency

Already the most efficient transmitters in the field, our latest models now deliver 20 W of output without exceeding the current draw of older 10 W units.
View datasheet
Deploy with Confidence

Deploy with Confidence

Built to last and engineered for performance, Quasonix transmitters deliver the rugged reliability your mission demands.
View datasheet
Find the Perfect Transmitter for Your Mission

Find the Perfect Transmitter for Your Mission

With broad frequency, power, and modulation capabilities—plus dozens of options like LDPC coding and variable power—Quasonix has the right transmitter for you.
View datasheet

Options

Available on Most Transmitters

  • AC: Automatic Carrier Wave Output
  • AI: Auxiliary Input for digital data that is already premod filtered
  • AP: Adapter Plate (hardware accessory)
  • BRx: Baud Rate
  • C7: Quasonix interpretation of IRIG 106-17 Appendix 2-C serial control protocol
  • CE: Convolutional Encoder (k=7 rate 1/2)
  • CF: Clock-free Baseband Interface
  • CG: Clock Generator Output to Baseband Connector
  • DP: Dual Power, 64 settings, user selects one for “high” and one for “low”, chosen via baseband conn. pin
  • FM: Allows the TIMTER to function as an analog FM transmitter
  • FO: Frequency Offset
  • GN: GPS Notch (lowers noise at L1 and L2)
  • HR: High Bit Rate – Increases default max bit rate to 46 Mbps (23 Mbps for Tier 0)
  • ID: Internal Clock and Data can be saved as a power- up default
  • LC: Low current in the RF Off state, < 10 mA (hdw opt.)
  • LD6: Extended Low-Density Parity Check (LDPC)
  • LR: Low Bit Rate – Decreases default min bit rate to 50 kbps (25 kbps for Tier 0)
  • MA: Below Lower S band, 2025.0 MHz to 2110.0 MHz (for Space operation and Space research applications)
  • MS: Modulation Scaling
  • P9: MDM-9 Accessory Board (hardware accessory)
  • PF: Parallel Port Frequency Programming
  • PM: Parallel Port Mode Selection
  • PS: Hardware Preset (PS2, PS4, PS8, or PS16)
  • RH: Recall Holdoff
  • VF: Variable FIFO Depth, controls transmitter latency
  • VP: Variable power (31 settings, spanning 24 dB)
  • WV: Wide input voltage range

Documents

File Icon
Quasonix Catalog

Catalog of Quasonix’s full product line including transmitters, antennas, receivers, networking equipment, and test equipment. Also includes examples of possible product configurations.

File Icon
TIMTER™ Transmitter Datasheet

Features, options, specifications, and select accessories for Quasonix’s range of multi-mode telemetry transmitters, including nanoTX™ and nanoPuck™.

File Icon
Receiver and Transmitter Low-Density Parity Check Datasheet

The Low Density Parity Check (LDPC) Forward Error Correction mode improves link margin equivalent to nearly tripling the operating distance on your telemetry link.

File Icon
SOQPSK with LDPC ITC Paper

“SOQPSK with LDPC: Spending Bandwidth to Buy Link Margin,” by Terry Hill & Jim Uetrecht; presented at ITC 2013.

File Icon
Transmitter Configuration with STC and LDPC (Download)

This brief presentation provides flowcharts and diagrams to help clarify transmitter configuration with Space-Time Coding (STC) and Low-Density Parity Check Coding (LDPC)

<1 MB

File Icon
Receiver and Transmitter Low-Density Parity Check Guide

This technical guide introduces Low-Density Parity Check (LDPC) encoding, its uses and benefits, the Quasonix products it is available for, and considerations for optimal set-up and use.

1.1.1

File Icon
Transmitter Binary Protocol Tester Manual

How to test the binary protocol of Quasonix telemetry transmitters using Binary Protocol Tester software provided by Quasonix.

1.0.4

File Icon
JF-12 Files (1 MB Download)

These files address the applicability of the US Government’s JF-12 and DD Form 1494 classification documents to Quasonix’s TIMTER™ transmitter product line.

1 MB

File Icon
TIMTER™ Transmitter Manual

Installation and operation of Quasonix’s TIMTER™ Multi-mode Digital Telemetry Transmitters.

3.9.20

File Icon
GMLRS Transmitter Manual

Installation and operation of Quasonix’s GMLRS multi-mode digital telemetry transmitters.

1.3.19

File Icon
Transmitter Binary Protocol Manual

The binary serial protocol is designed to facilitate efficient machine to machine communication. This manual defines the binary protocol version 1.009.

4.0.3

File Icon
IRIG 106-13, Appendix N Interpretation

Explains Quasonix’s standard transmitter protocol and how transmitters with the C7 option (IRIG 106-07 control protocol) will behave differently.

1.2

File Icon
Transmitter RF Troubleshooting Guide

Quick, three-part test to verify that the RF output on a Quasonix telemetry transmitter is working correctly.

1.2

File Icon
Transmitter Overtemp Control Guide

How to modify the internal overtemperature (OT) setting using the OC command. This applies to all Quasonix telemetry transmitters.

1.0

File Icon
Receiver and Transmitter Terminal Software

A simple serial port (COM) terminal emulation program used for serial communication with Quasonix products.

1.9b

<1 MB

File Icon
Transmitter Binary Protocol Tester Software

Software (bintest.exe) for testing the binary protocol of Quasonix telemetry transmitters connected to PC via serial port.

1.029

<1 MB

File Icon
Transmitter Get Info Software

Free Quasonix utility that collects diagnostic information from a transmitter via a serial connection to a computer.

1.004

<1 MB

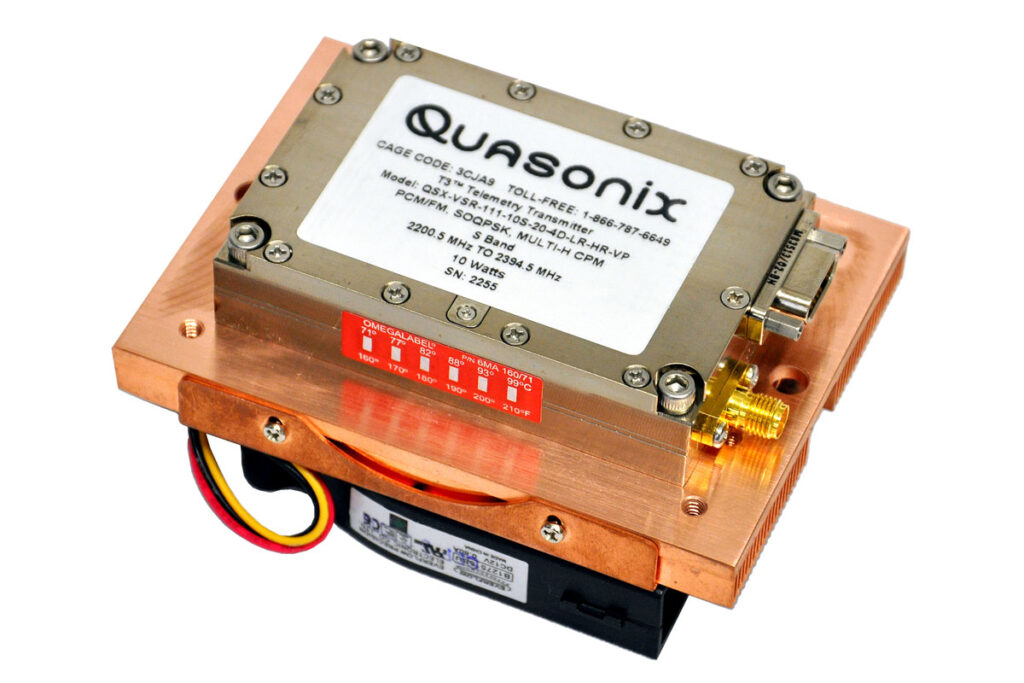

Thermal Considerations

The heat sink required for a particular transmitter depends heavily on the installation. Factors such as altitude, air temperature, air flow, and mass of the mounting surface all have a substantial impact on the flow of heat away from the transmitter. Quasonix offers several types of integrated and add-on heat sinks. Please contact support@quasonix.com for the power dissipation required and heat sink recommendations for your particular TIMTER™ transmitter.

Regardless of the heat sink, Quasonix strongly suggests using a thermal pad, such as Q-Pad® II from Bergquist.
