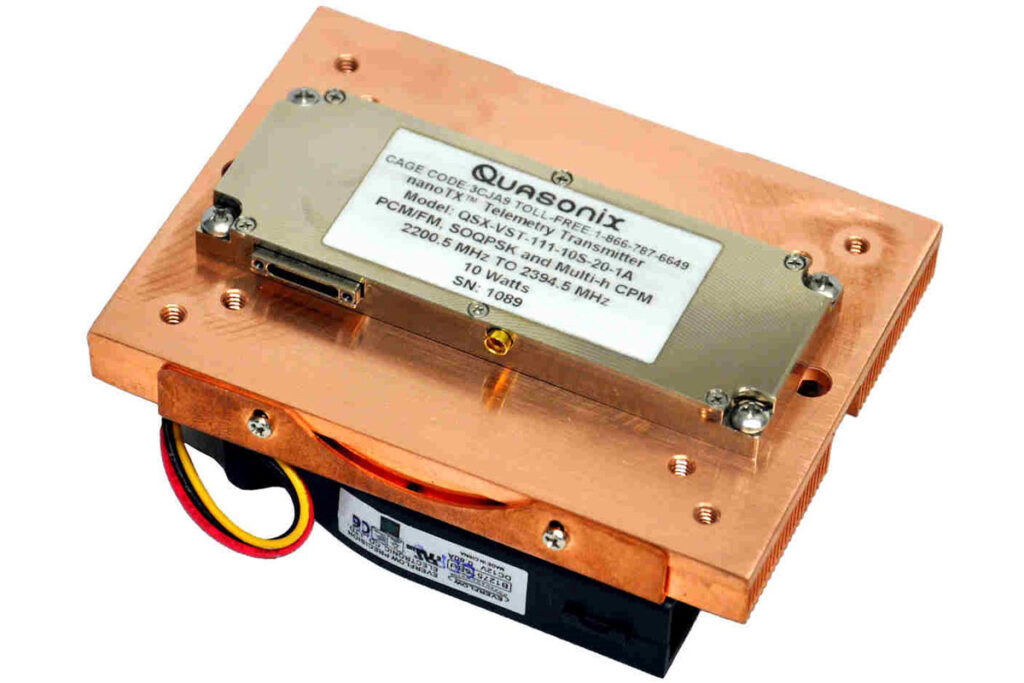

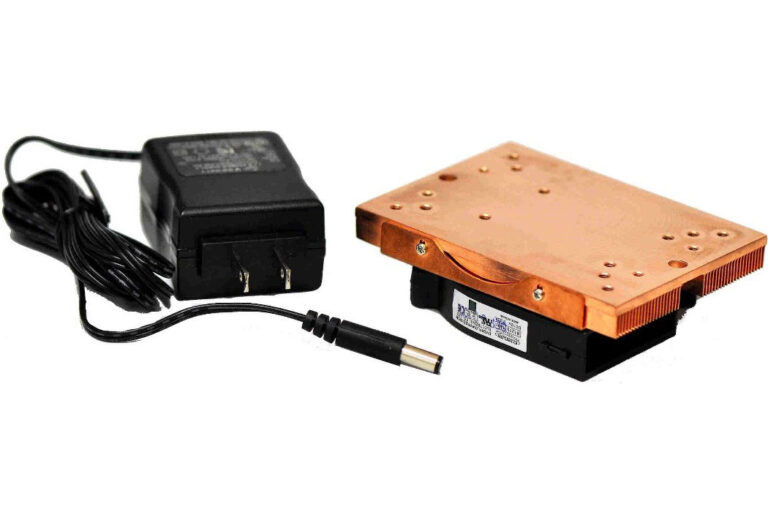

The heat snk assembly includes an integral +12 VDC fan and a power supply transformer. Use for TIMTER™, Dual TIMTER™, and nanoTX™ transmitter testing at the bench; not airborne approved.
Thermal Considerations
The heat sink required for a particular transmitter depends heavily on the installation. Factors such as altitude, air temperature, air flow, and mass of the mounting surface all have a substantial impact on the flow of heat away from the transmitter. Quasonix offers several types of integrated and add-on heat sinks. Please contact support@quasonix.com for the power dissipation required and heat sink recommendations for your particular TIMTER™ transmitter.
Regardless of the heat sink, Quasonix strongly suggests using a thermal pad, such as Q-Pad® II from Bergquist.
