Accessories

Whether you’re connecting, cooling, or controlling your telemetry gear, Quasonix has the accessories you need to do it right. Use the table below to find the items that support your particular setup.

ImageItemDescriptionhf:tax:product_categoryhf:tax:cat_supported_by_accessoryhf:tax:accessory_signal_standard

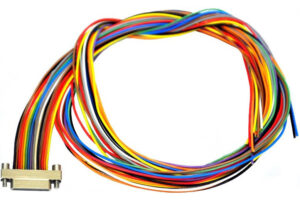

15-Pin Nano-D TTL PigtailsA 15-pin Nano-D with 36-inch teflon-insulated pigtails for connecting to transmitters with TTL clock and data baseband interface. Part number: QSX-AC-NANO15-36PTwiring-connector accessoriesnanotx transmittersttl

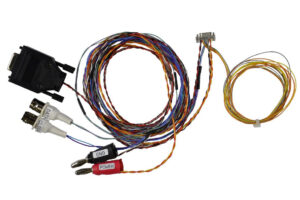

15-Pin Nano-D TTL Wiring HarnessA 15-pin Nano-D wiring harness for connecting to transmitters with TTL clock and data. Includes power, serial control, and baseband connectors. Part Number: QSX-AC-NANO15-HARNESSwiring-connector accessoriesnanotx transmittersttl

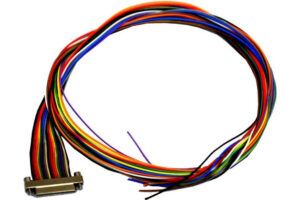

21-Pin Nano-D RS-422 PigtailsA 21-pin Nano-D with 36-inch teflon-insulated pigtails for connecting to transmitters with RS-422 clock and data baseband interface. Part Number: QSX-AC-NANO21-36PTwiring-connector accessoriesnanotx transmittersrs422

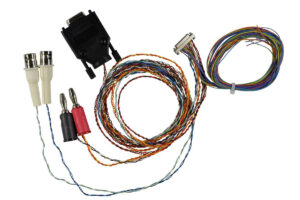

21-Pin Nano-D RS-422 Wiring HarnessA 21-pin Nano-D wiring harness for connecting to transmitters with RS-422 clock and data. Includes power, serial control, and baseband connectors. Part Number: QSX-AC-NANO21-HARNESSwiring-connector accessoriesnanotx transmittersrs422

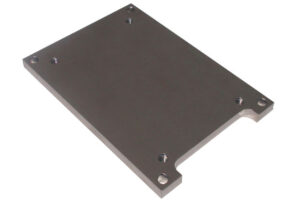

Adapter Plate for 2.5″ x 3.5″ FootprintThis adapter plate allows for the standard 2” x 3” TIMTER™ to be mounted to the larger 2.5” x 3.5” mounting surface occupied by other industry transmitters. Part Number: QSX-AP96adapter-converter accessoriesdual-timter timter transmittersn-a

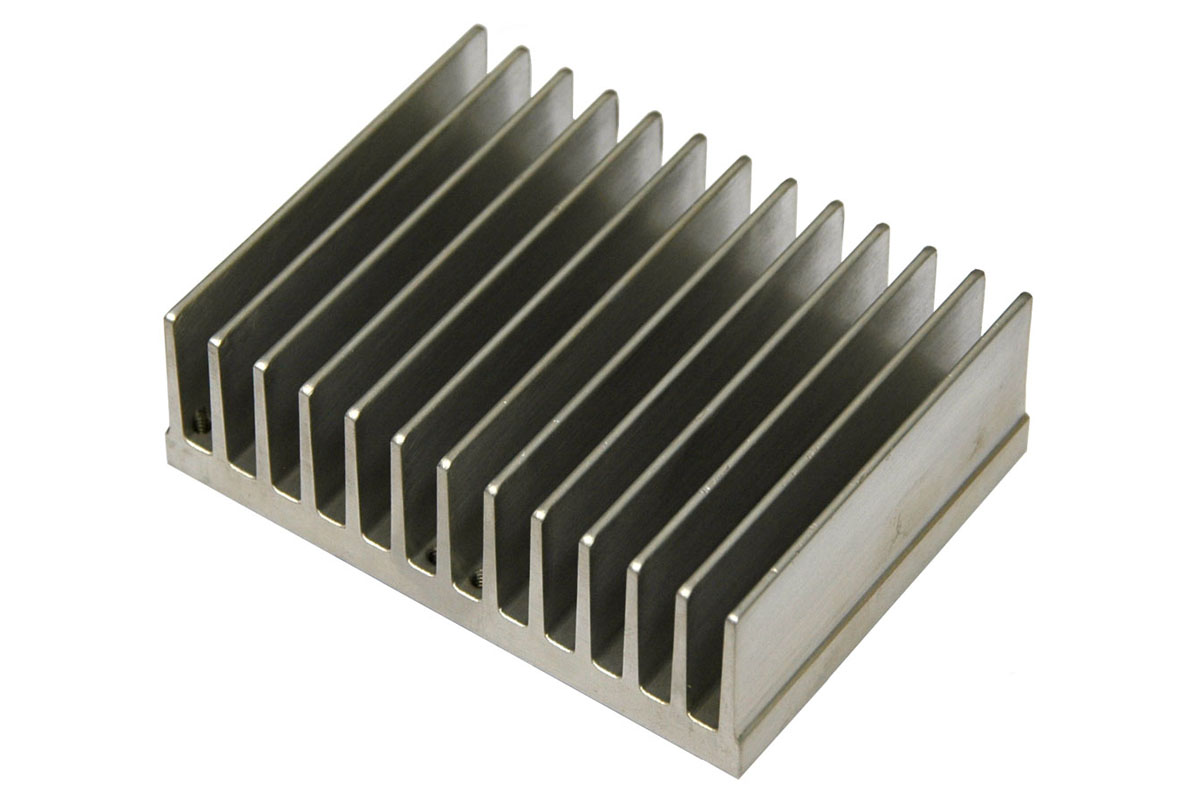

Airborne Receiver Heat SinkHeat sink for 3" x 4" compact (airborne) receiver. Does not require a power source. Part Number: QSX-AC-RXHSheat-sink accessoriescompact-rdms-gen-2 compact-rdms-gen-3 receivers-demodulatorsn-a
Heat Sink Thermal Pad2" x 3" Thermal Pad, Bergquist QPAD II, 0.006"/0.152mm thick, for use with heat sinks. Part Number: QSX-AC-TXTPheat-sink accessoriesdual-timter nanotx timter transmittersn-a
MDM-15 RS-422 and TTL Wiring HarnessFemale MDM-15 connector wiring harness with banana plugs for power and ground, BNC connectors for both RS-422 and TTL clock and data, and a DB-9 connector for serial control. Part Number: QSX-AC-MDM15-HARNESS-PIN-VRwiring-connector accessoriesdual-timter timter transmittersrs422-and-ttl
MDM-15 RS-422 and TTL Wiring Harness for RDMS™Male MDM-15 connector wiring harness with banana plugs for power and ground, BNC connectors for TTL clock and data, and a DB-9 connector for serial control. Part Number: QSX-AC-MDM15-HARNESS-SOCK-RDMSwiring-connector accessoriescompact-rdms-gen-2 compact-rdms-gen-3 receivers-demodulatorsttl

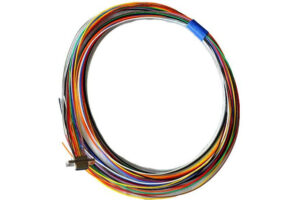

MDM-15 RS-422 Connector with PigtailsFemale MDM-15 connector with 36-inch pigtails. For RS-422 clock and data. Part Number: QSX-AC-MDM15-36-PINwiring-connector accessoriesdual-timter timter transmittersrs422

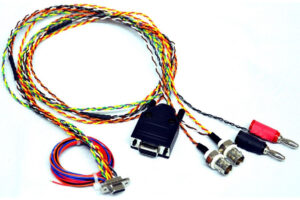

MDM-15 RS-422 Wiring HarnessFemale MDM-15 connector wiring harness with banana plugs for power and ground, BNC connectors for RS-422 clock and data, and a DB-9 connector for serial control. Part Number: QSX-AC-MDM15-HARNESS-PINwiring-connector accessoriesdual-timter timter transmittersrs422

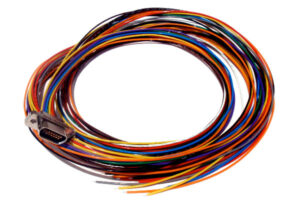

MDM-15 TTL Connector with PigtailsMale MDM-15 connector with 36-inch pigtails. For TTL clock and data. Part Number: QSX-AC-MDM15-36-SOCKwiring-connector accessoriesdual-timter timter transmittersttl

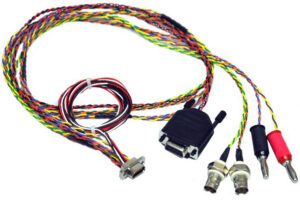

MDM-15 TTL Wiring HarnessMale MDM-15 connector wiring harness with banana plugs for power and ground, BNC connectors for TTL clock and data, and a DB-9 connector for serial control. Part Number: QSX-AC-MDM15-HARNESS-SOCKwiring-connector accessoriesdual-timter timter transmittersttl

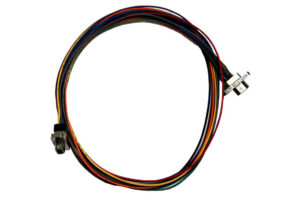

MDM-9 Female to MDM-9 Male HarnessMDM-9 Female to MDM-9 Male Harness, 18 inches. Part Number: QSX-AC-MDM9MF-HARNESSwiring-connector accessoriesdual-timter timter transmittersn-a

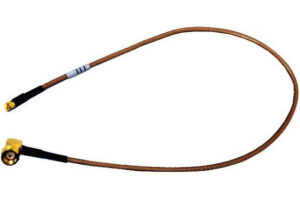

MMCX to SMA Adapter CableRG-316 coaxial cable with right-angle MMCX and SMA connectors. Length 34 cm (13.4 inches). Part number: QSX-AC-MMCX-SMA-R-R-34adapter-converter wiring-connector accessoriesnanopuck nanotx transmittersn-a

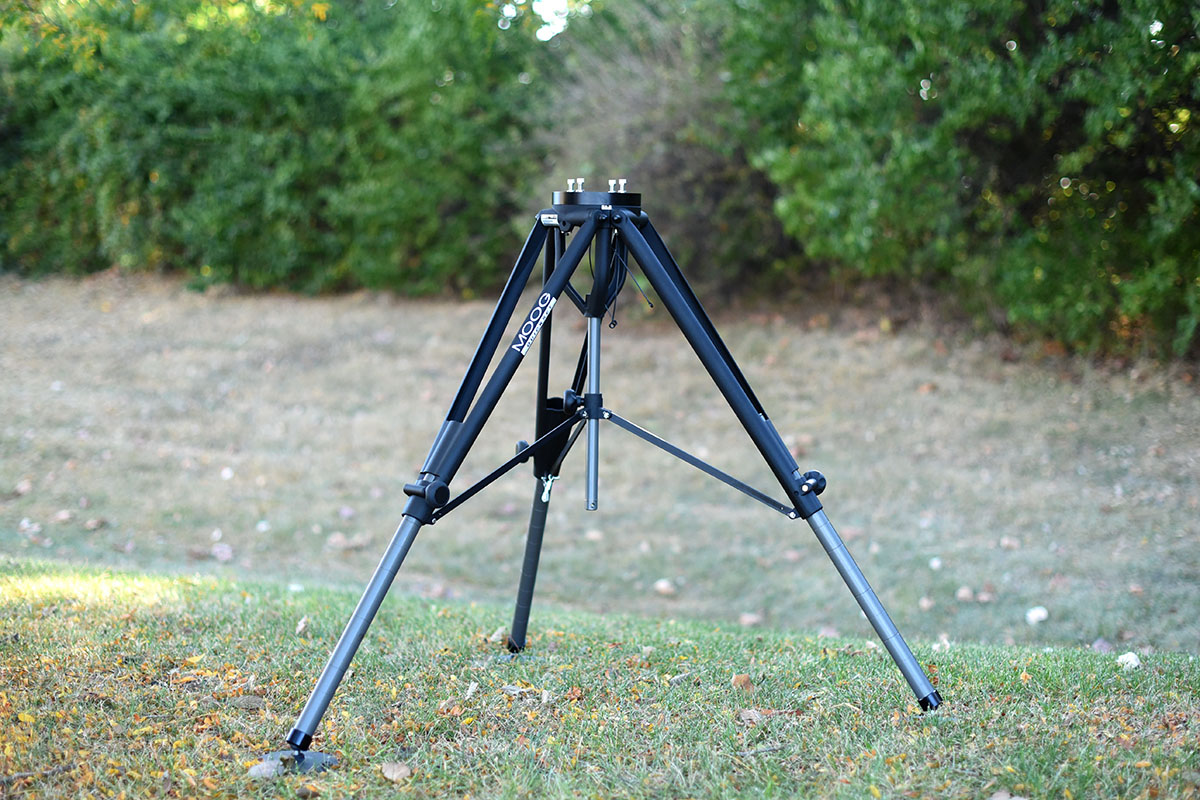

QTrack™ Antenna TripodCapable of supporting 400 pounds, this Moog Gibralter tripod is a great way to ensure portable stability for your QTrack™ antenna. Part number QC-ACC-001.tripod accessoriesqtrack antennasn-a

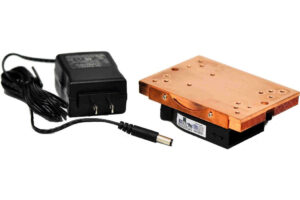

Transmitter AC-Powered Heat SinkFan-cooled, AC-powered heat sink for transmitters. Used for testing at the bench; not airborne approved. Part Number: QSX-AC-32-HS-12V (formerly QSX-TIMTER-HS-12V).heat-sink accessoriesdual-timter nanotx timter transmittersn-a

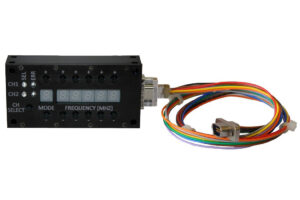

Transmitter Digital Frequency and Mode SwitchboxTransmitter digital frequency and mode switch box with MDM-9 connector allows configuration without the use of a computer. Part Number: QSX-AC-DSWBXswitchbox accessoriesdual-timter timter transmittersn-a

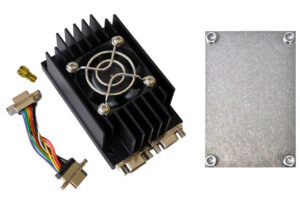

Transmitter-Powered Heat SinkFan-cooled heat sink for 2" x 3" transmitters for airborne applications. Operates from 21 VDC to 34 VDC, powered from existing transmitter wiring. Part Number: QSX-AC-HS-28V-SPheat-sink accessoriesdual-timter timter transmittersn-a

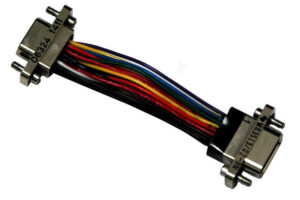

Transmitter-Powered Heat Sink Wiring HarnessExternal wiring harness for fan-cooled heat sink for 2" x 3" transmitters. For airborne applications. Part Number: QSX-AC-HARNESS-HEATSINK-TXheat-sink wiring-connector accessoriesdual-timter timter transmittersn-a

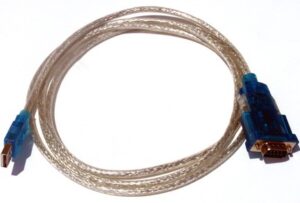

USB to Serial Converter CableAllows for transmitter configuration using a computer that has a USB port but no serial ports. Part Number: QSX-AC-USBSER-CONVadapter-converter wiring-connector accessoriesdual-timter timter transmittersn-a
