Measure twice, launch once

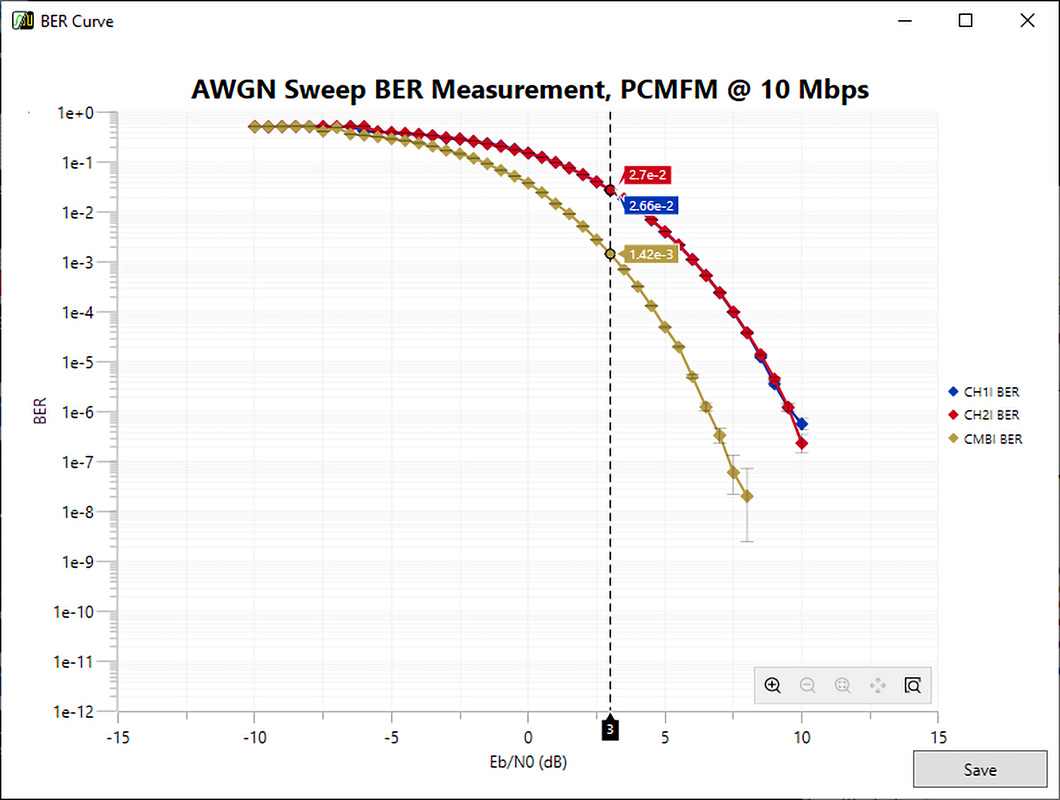

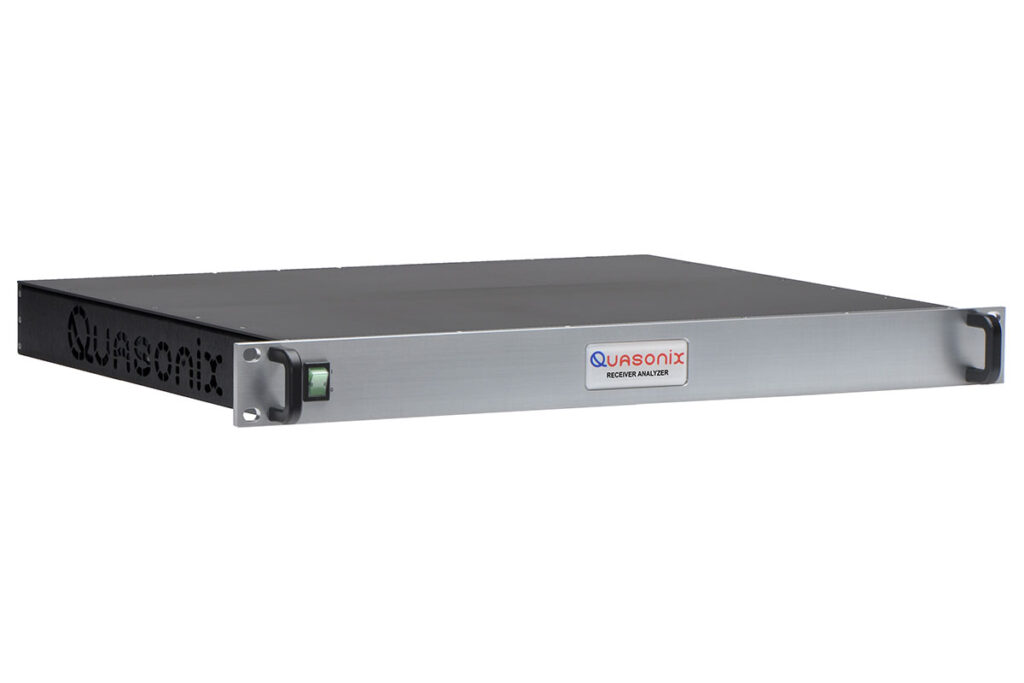

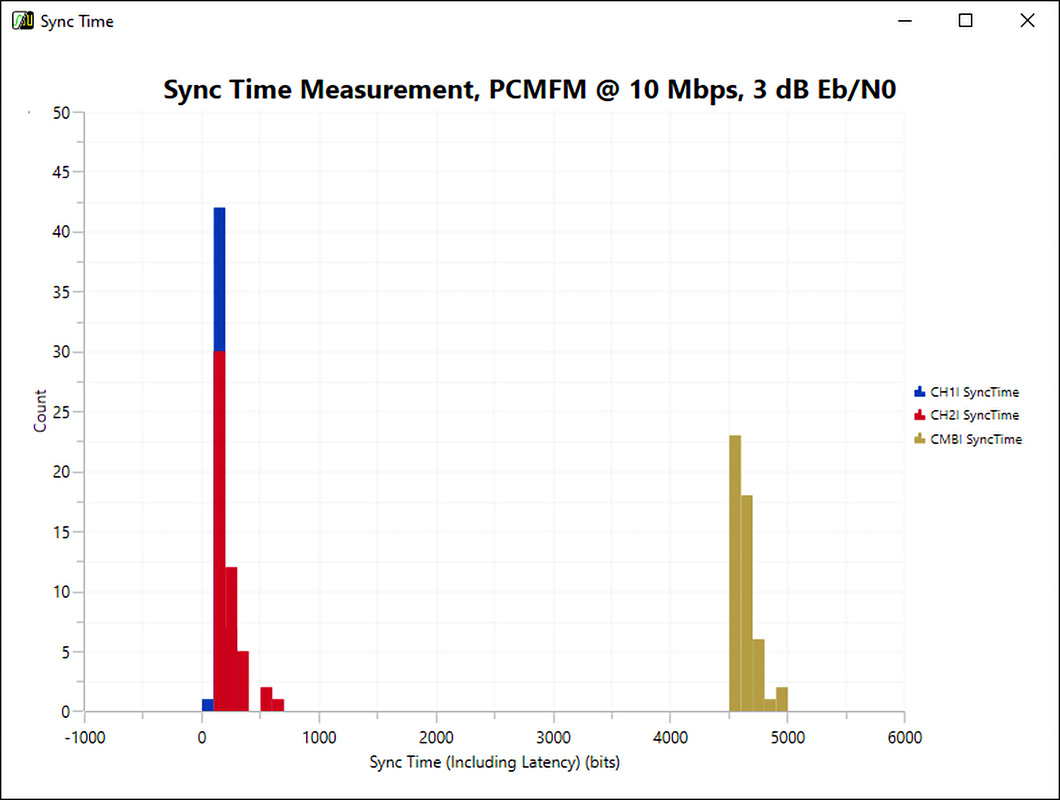

Verify your pre-flight receiver configuration with the Quasonix Receiver Analyzer. With two complete ARTM signal generators covering 200 MHz to 2500 MHz and 4.4 GHz to 5.25 GHz contiguously and power levels from 0 dBm to –130 dBm, the Receiver Analyzer automates a wide range of receiver and combiner performance tests including bit error rate, noise figure, acquisition time and threshold, combiner break frequency, and PCM/FM modulation index tests. Eight bit error rate testers include integrated synchronization detection/timing and bit clock frequency counters.
Automate Receiver Testing with Confidence
Built-in signal sources, emulation, and BERTs deliver full-system validation—fast, repeatable, and reliable.
View datasheet
Get Results 100x Faster

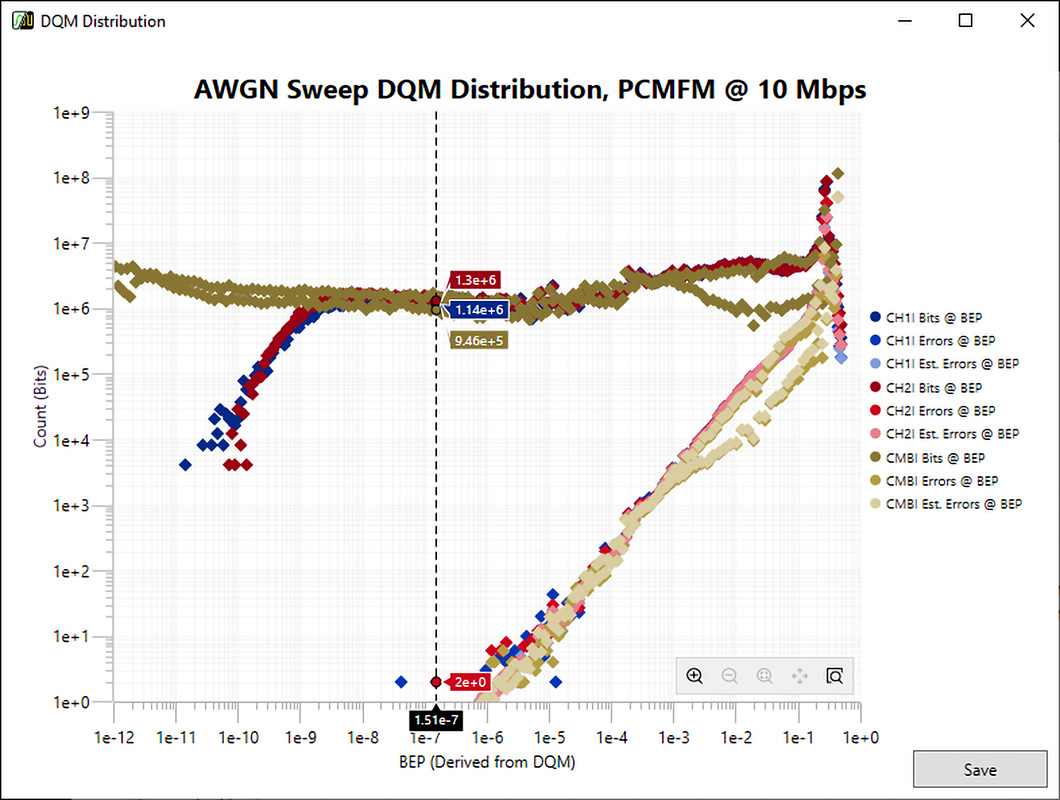

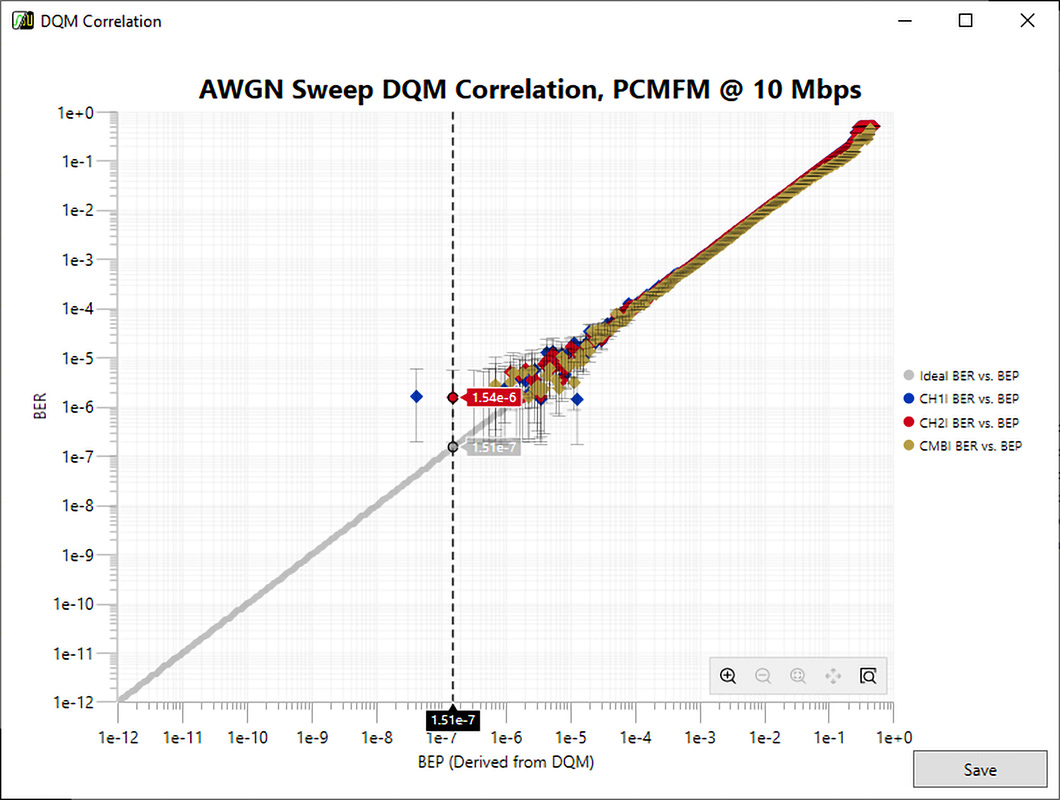

You’re not tied to bit error rate measurements. Accelerate your workflow with calibrated DQM to achieve smarter, streamlined testing and real-time data visualization.
View datasheet
Test YOUR Way, with Intuitive Control

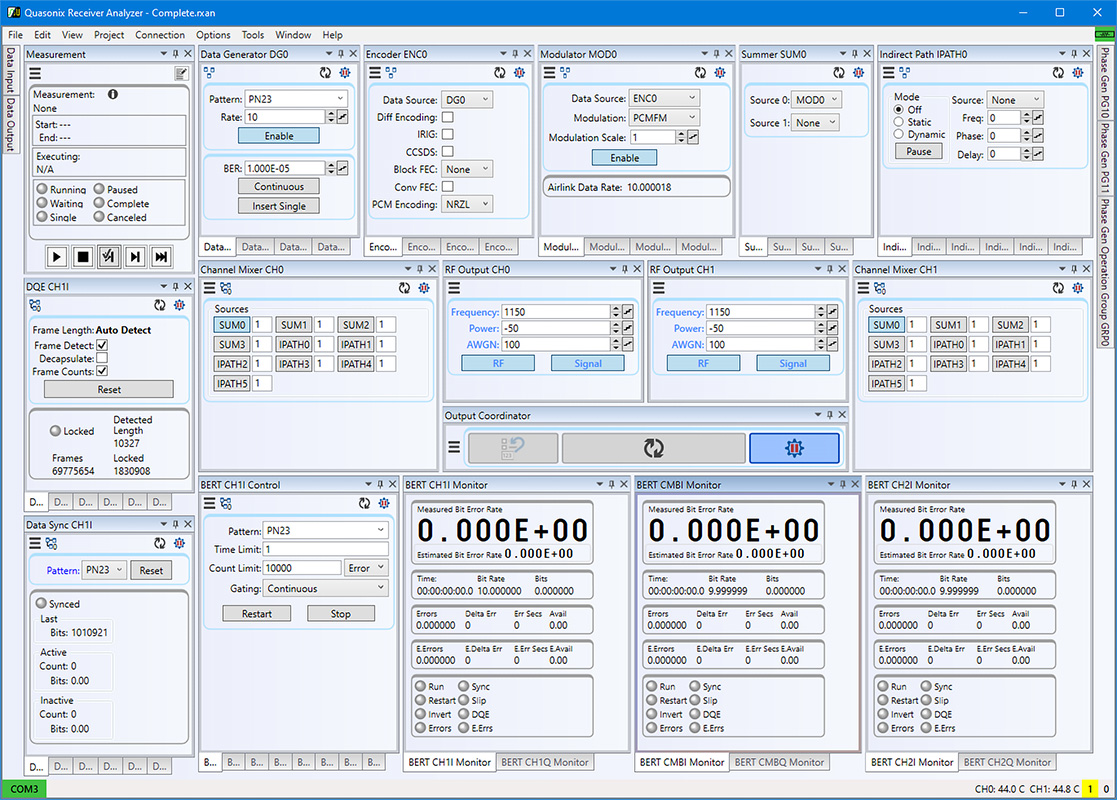

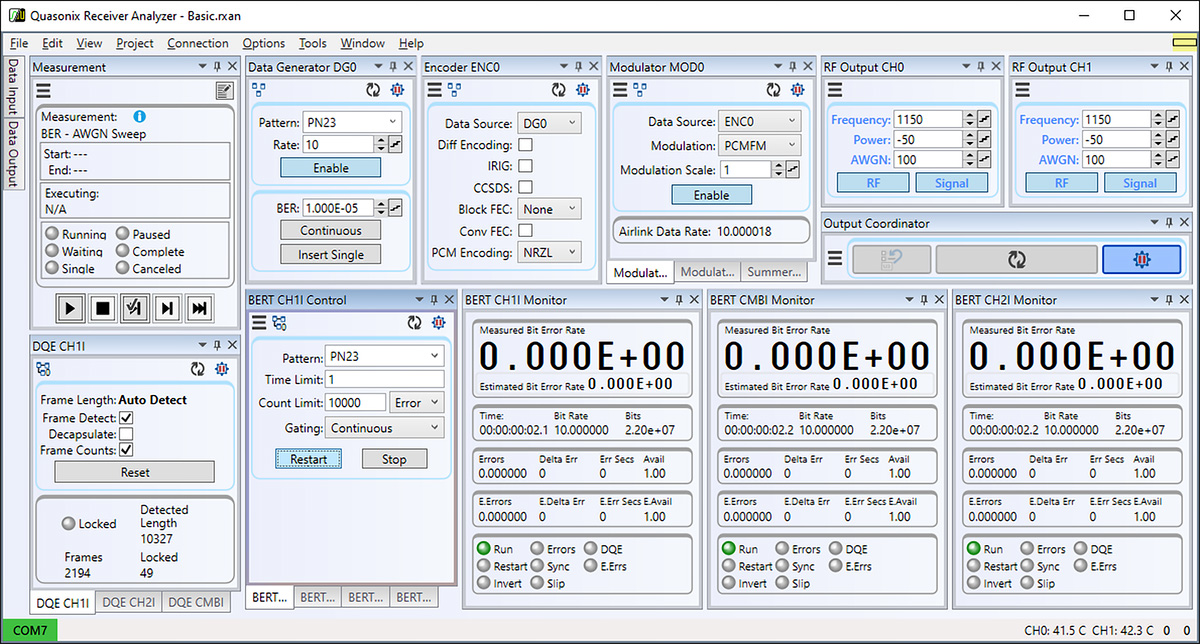

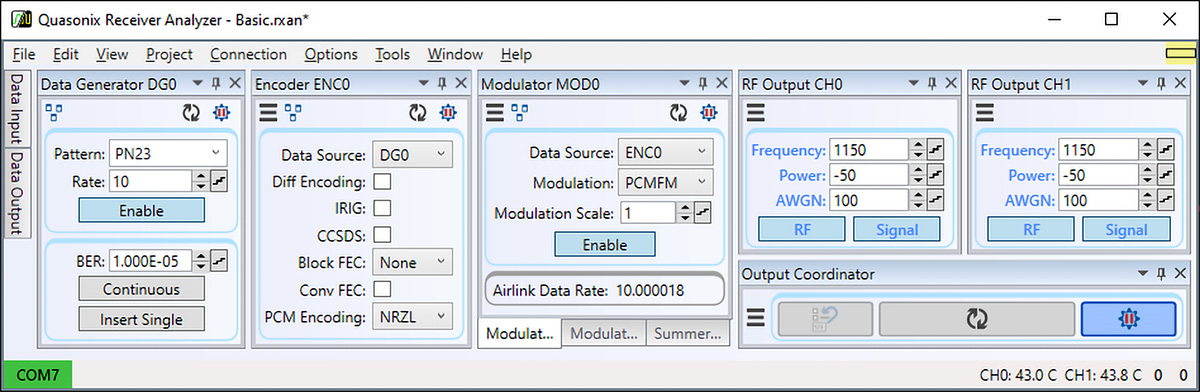

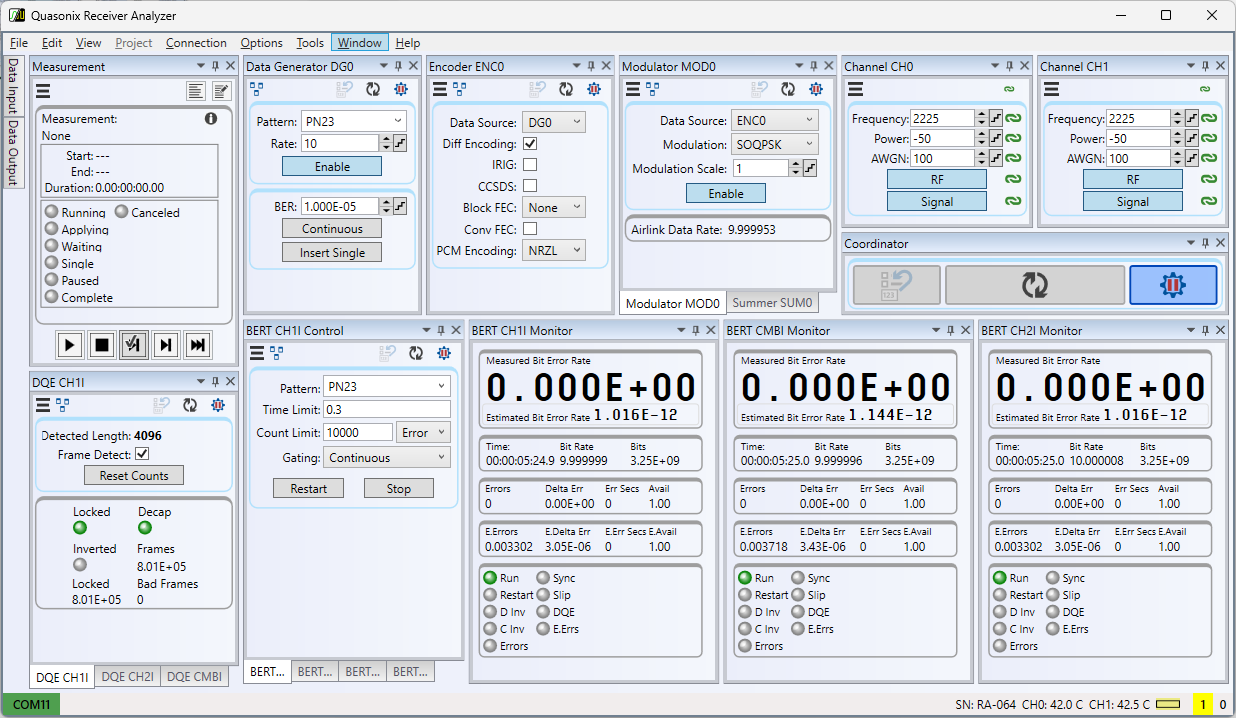

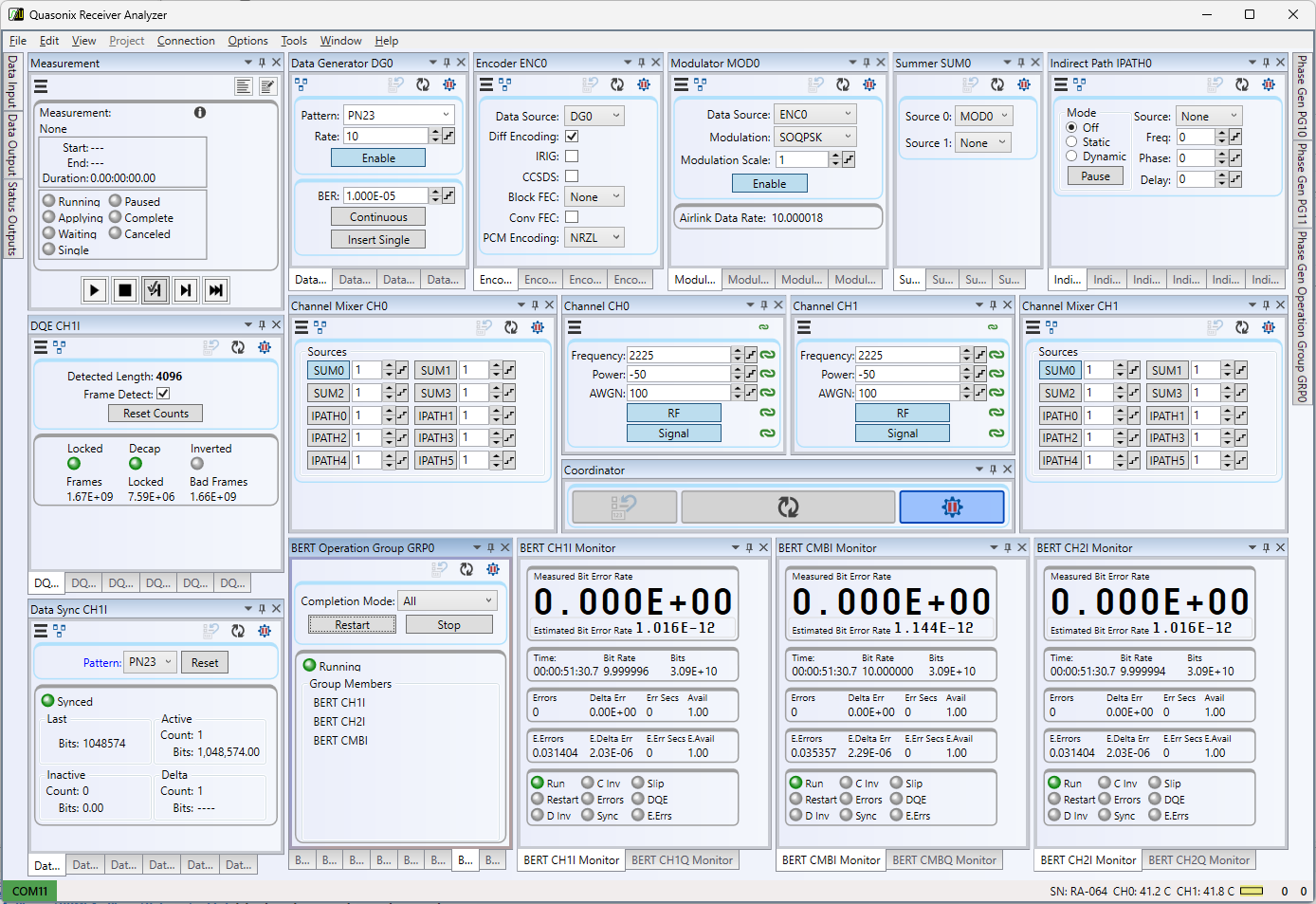

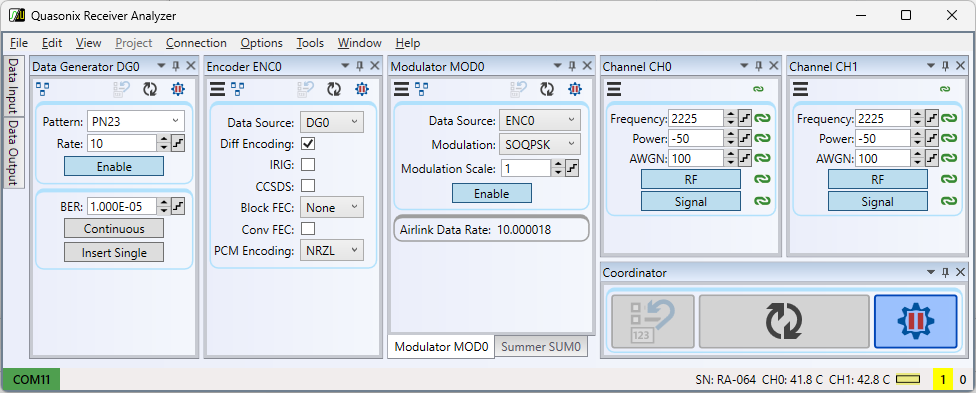

Customize everything from test plans to UI layout in a system that’s powerful, easy to use, and ready to grow with you.
View datasheet
Documents
Receiver Analyzer Standard Letter of Volatility
This document describes the memory and media present in Quasonix Receiver Analyzers.
Receiver Analyzer Datasheet (Gen 3)
Features and specifications for the third-generation Quasonix Receiver Analyzer and its accompanying software user interface.
Receiver Analyzer Quick-Start Guide (Gen 3)
Quick-Start installation instructions for the third-generation rackmount Quasonix Receiver Analyzer.
Receiver Analyzer Manual (Gen 3)
Installation and operation of the third-generation rackmount Quasonix Receiver Analyzer, which includes a powerful new user interface.
