Big Is Just the Beginning

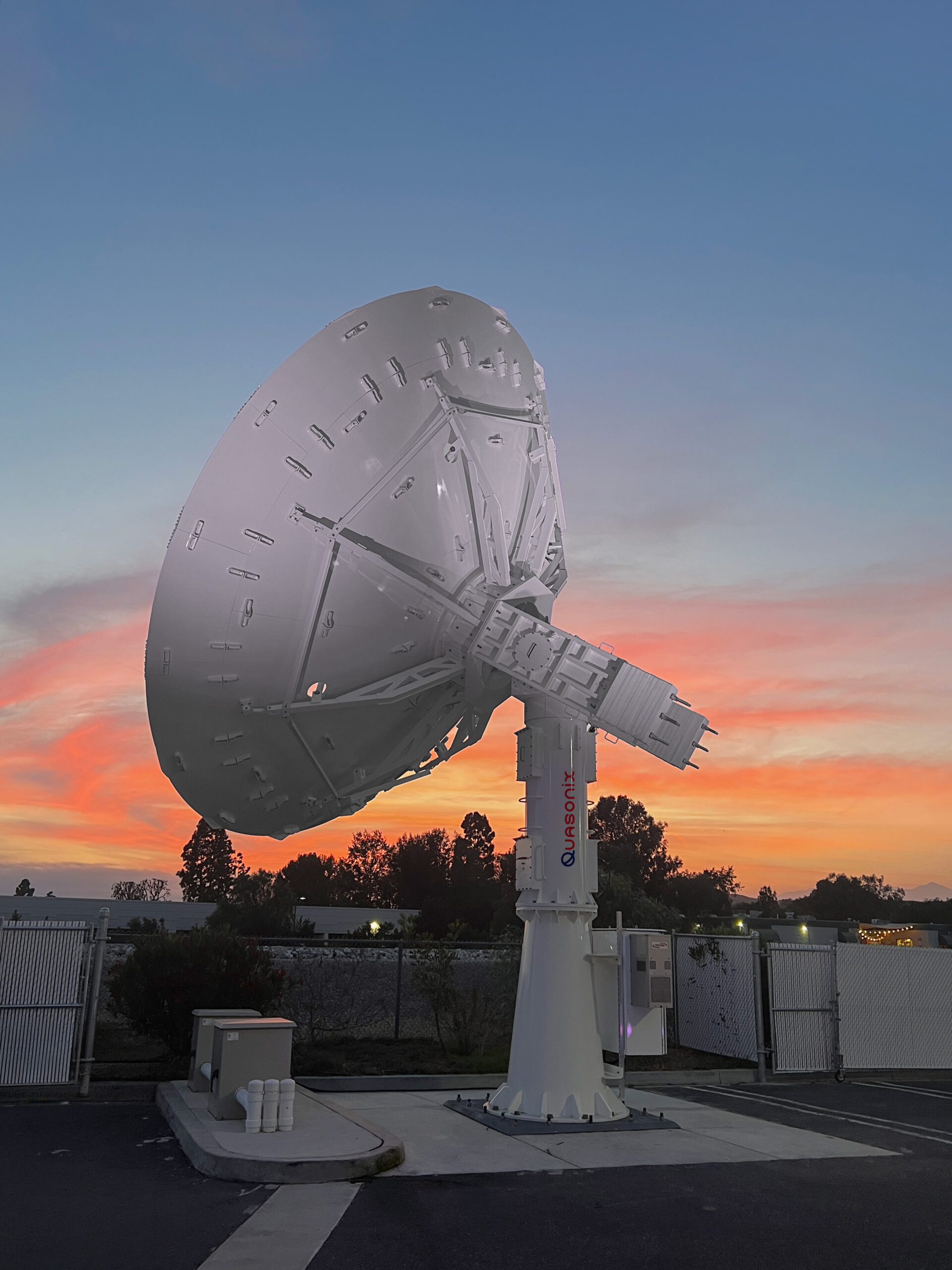

Quasonix PD900 Series Antennas are designed for sustained precision and reliability, reflecting decades of experience engineering large-aperture telemetry systems and built with robotics-grade components chosen for duty cycles far beyond typical telemetry demands. HyperTrack™ technology fuses real-time FPGA processing with advanced control algorithms to deliver fast response, smooth motion, and robust interference rejection. The PD900’s modular architecture supports rapid-delivery COTS configurations and MOTS variants tailored to your requirements.
Get More with Quasonix
Every PD900 is designed and assembled by a team with decades of experience delivering large-aperture telemetry antennas. Most installations are built around Quasonix ground station solutions, delivering capabilities not achievable with conventional systems, including Data Quality Metrics, FPGA-based signal processing, and Intelligent Gain Control.
View datasheet
Track with Unrivaled Precision
FPGA-based real-time control eliminates tracking jitter and lag, outperforming legacy control systems without exception. Plano-centric drive systems deliver positioning accuracy and repeatability to 0.01 degrees.
View datasheet
Ace the Test of Time
Our pedestals are built with weatherproof housings, military-grade slip rings, industrial temperature-rated electronics, and technology used in robotics, which requires 24-hours, 7-days-a-week precision positioning with 98% uptime.
View datasheet
Documents
PD900 Series Antenna Datasheet
Features and specifications for the PD900 Series of 24 ft (7.3 m) HyperTrack™ Telemetry Antennas.
HyperTrack™ Antenna Datasheet
Features of the HyperTrack™ line of telemetry antennas and the accompanying HyperTrack™ Antenna Control Unit (HTAC), plus available feeds and specifications.
HyperTrack™ Software Manual
Instructions for safely operating the Quasonix HyperTrack™ precision PD Series positioner, focusing on the local and browser-based user interfaces.
1.0
HyperTrack™ Antenna Periodic Maintenance Log
Instructions necessary for monthly inspection, preventive and corrective maintenance, and alignment of the antenna system in accordance with warranty requirements. This form/log is to be executed monthly and sent to Quasonix to maintain the warranty agreement.
HyperTrack™ Antenna Local Control Pendant Manual
Installation, operation, and troubleshooting of the HyperTrack™ Local Control Pendant, used to manually control motion of the azimuth and elevation axes of the HyperTrack™ Antenna System Pedestal.
2.0.1
HyperTrack™ Antenna Firmware Disk Image
This zipped download includes the HyperTrack™ firmware disk image (.img) and the corresponding release notes (.txt).
1.3.2
153 MB
HyperTrack™ Antenna Client Installer Package
This zipped download includes the HyperTrack™ client installer package (.msi) and the corresponding release notes (.txt).
1.3.2
22 MB

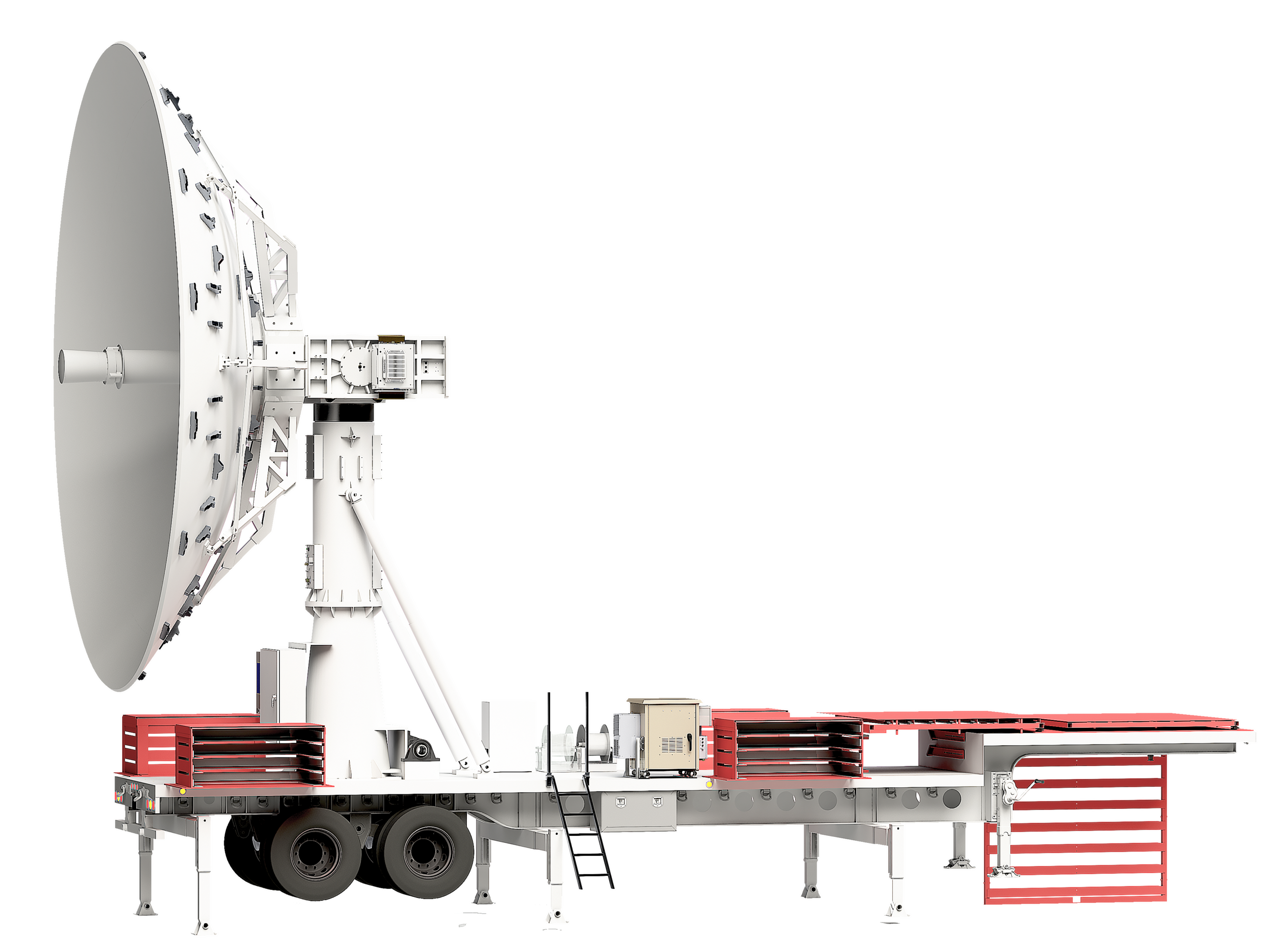

Transportable Antennas Slideshow
Quasonix antennas are going places, through innovative engineering that allows for greater size, mobility, and utility, while maintaining extended durability and jitter-free precision tracking. This slideshow gives you a taste of the ways we are responding to customers’ needs. You CAN take it with you.
