Transmitter Digital Frequency and Mode Switchbox

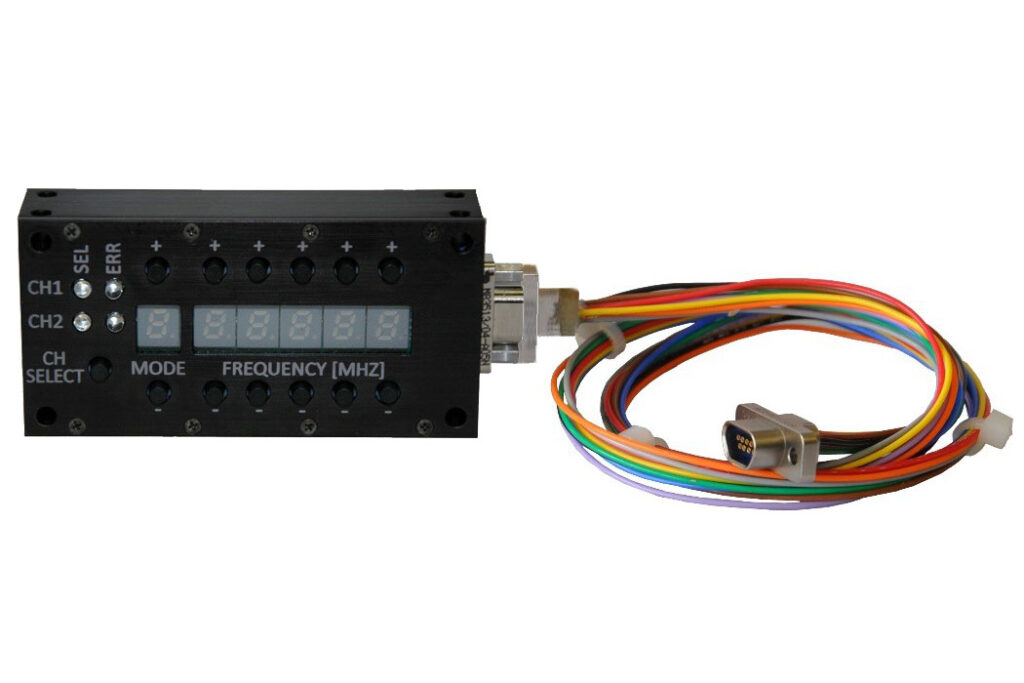

While the TIMTER™ provides a standard configuration interface that is easily accessible via a computer terminal, some users prefer configuration via an external switch box. The 2^nd Generation Quasonix switch box, used with e P9 option, provides six LED digits used to display the mode and frequency. This includes a total of five digits of frequency step up or down, in MHz, and one digit of mode selection in terms of the ARTM “Tier” number. There is also a channel selector for channel 1 or channel 2 when connected to a Dual Telemetry Transmitter. An 18” MDM-9 to MDM-9 cable harness is included.

Part Number: QSX-AC-DSWBX

Contact Sales

Transmitter Switchbox Manual (Gen 2)

How to set up and use the second-generation digital frequency and mode switchbox, released in 2018, for TIMTER™ transmitters.
