Trust But Verify
The QSight™ system is a multi-band, high-powered, boresight RF test source. It allows an operator to verify that the receive range telemetry system is properly configured and operating as expected prior to a mission, preventing costly test failures.
Configure QSight to Any Mission
Select from L, S, or C bands, data rates from 24 kbps to 46 Mbps, PN generators (standard or custom), PCM frame assembly, RS-422 or TTL data, and IRIG 218 TMoIP streaming—all with flexible polarization options.
View datasheet
Control Remotely with Ease

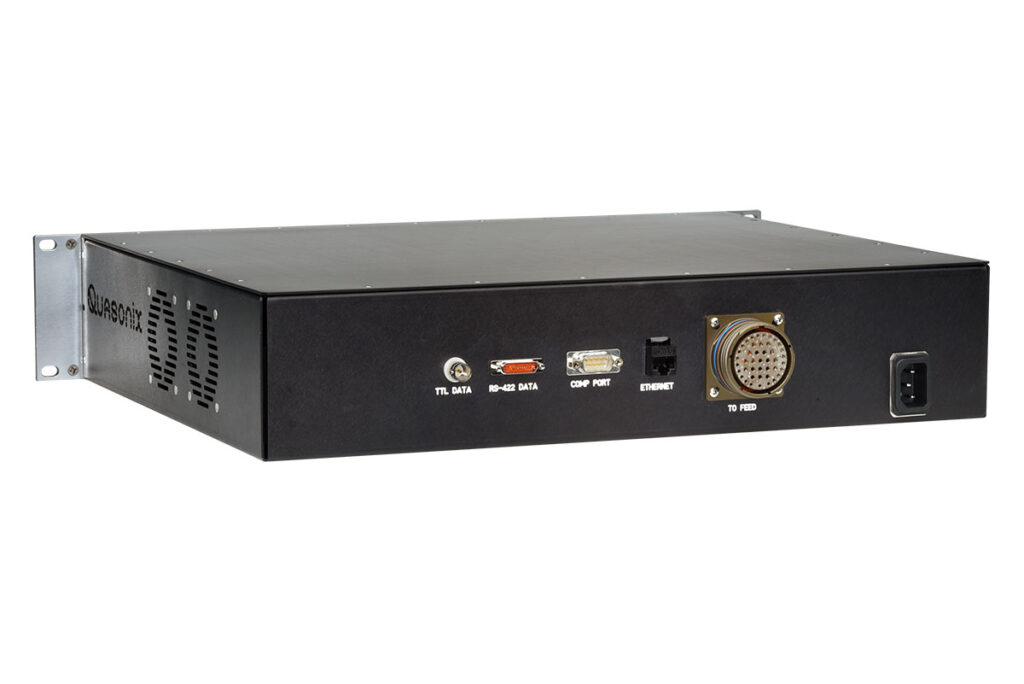

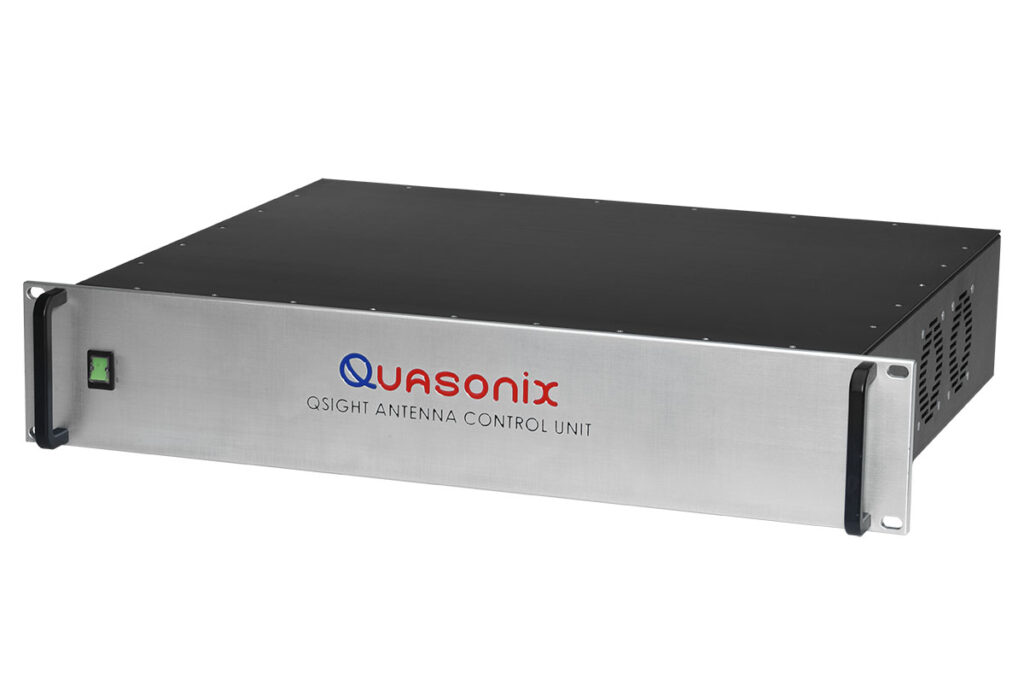

Access and manage the system via an embedded web server and your browser. The 2U Controller Assembly resides on your network and connects to the Transmit Assembly through a single cable.
View datasheet
Calibrate with Confidence
Leverage a 120 dB output power range, calibrated from –40 to +40 dBm EIRP, with operation down to –80 dBm. RF cables are part of the calibration, ensuring full-system accuracy every time.
View datasheet
Rely on Rugged, Weather-Ready Hardware

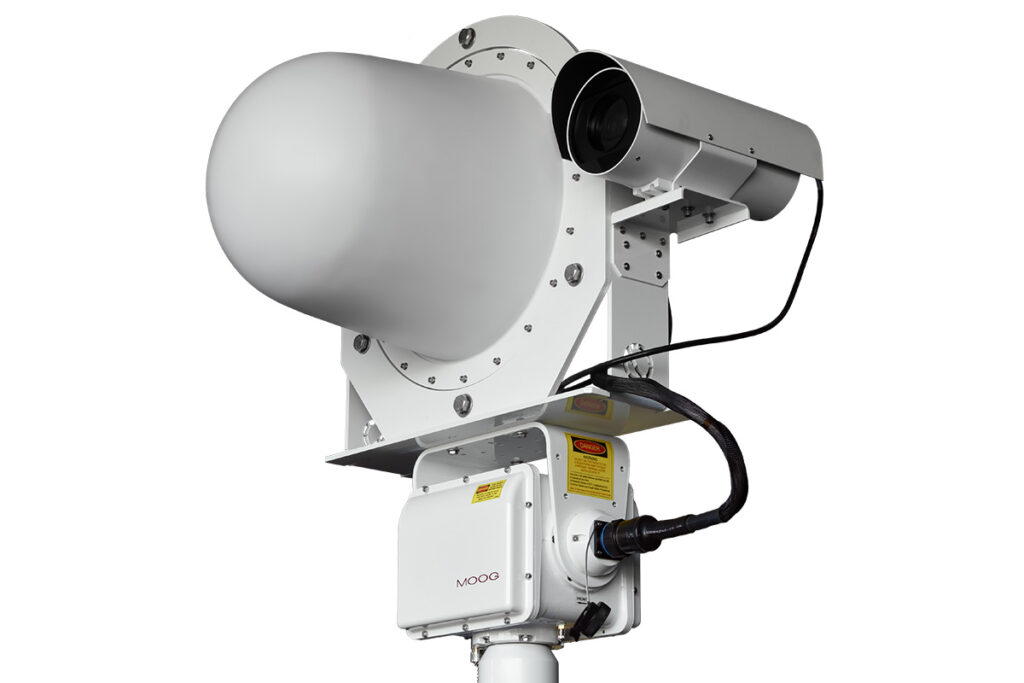

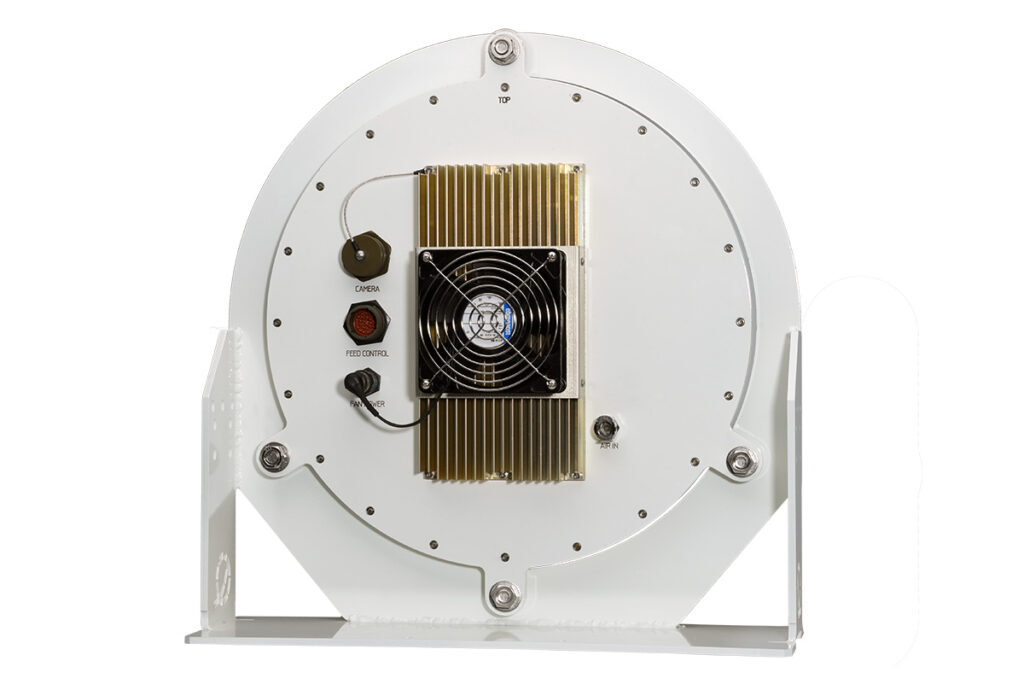

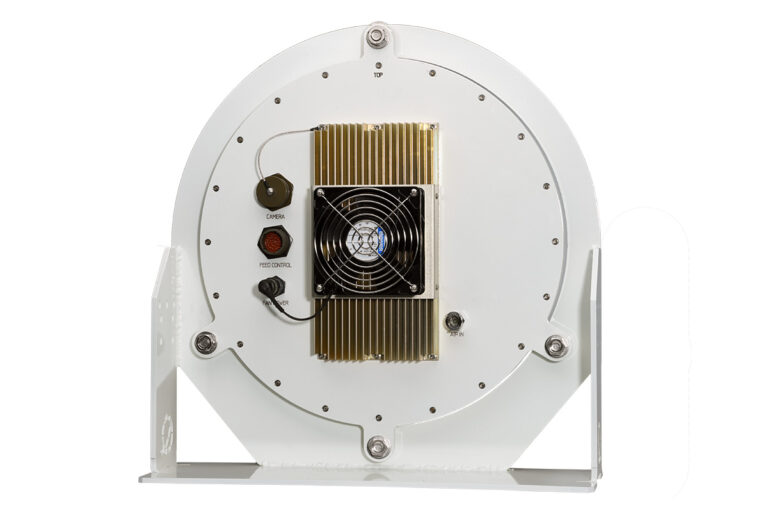

Deploy confidently in harsh environments with IP67 and NEMA-4X sealing, integrated fan cooling, and a dehydrated-air quick disconnect. An optional Ethernet-controlled positioner and camera are also available.
View datasheet
Documents
QSight™ Boresight Datasheet

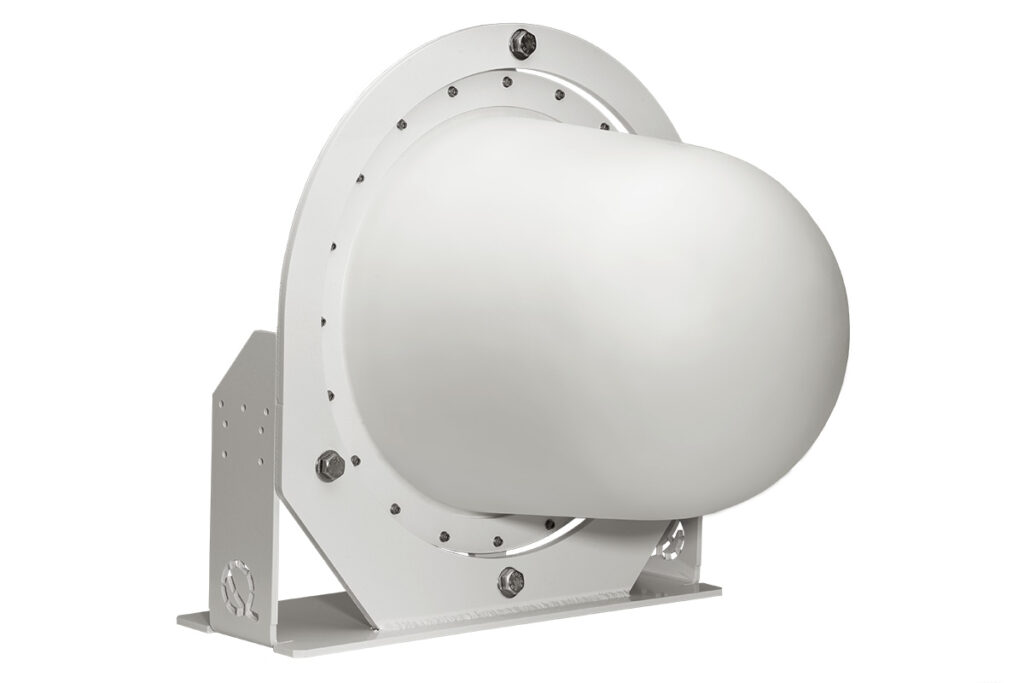

Features and specifications for the QSight™ boresight – a complete and simple solution including an L/S/C band dual-output Transmit Assembly (TA) and 2U rackmount Controller Assembly (CA).
QSight™ Boresight Manual
Installation and operation of Quasonix’s QSight™ boresight system, including hardware assembly and browser interface instructions.
