Panoramic Performance

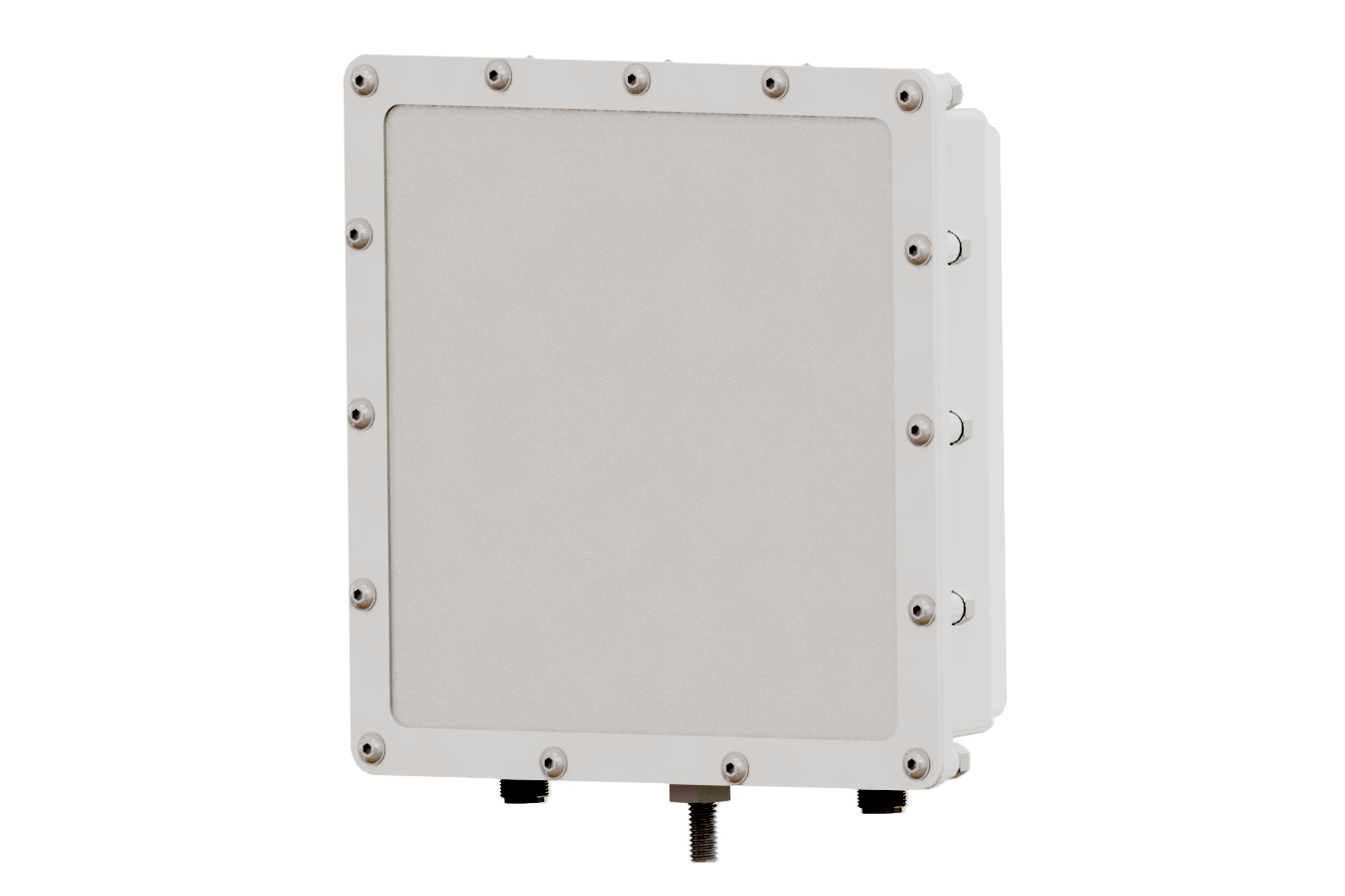

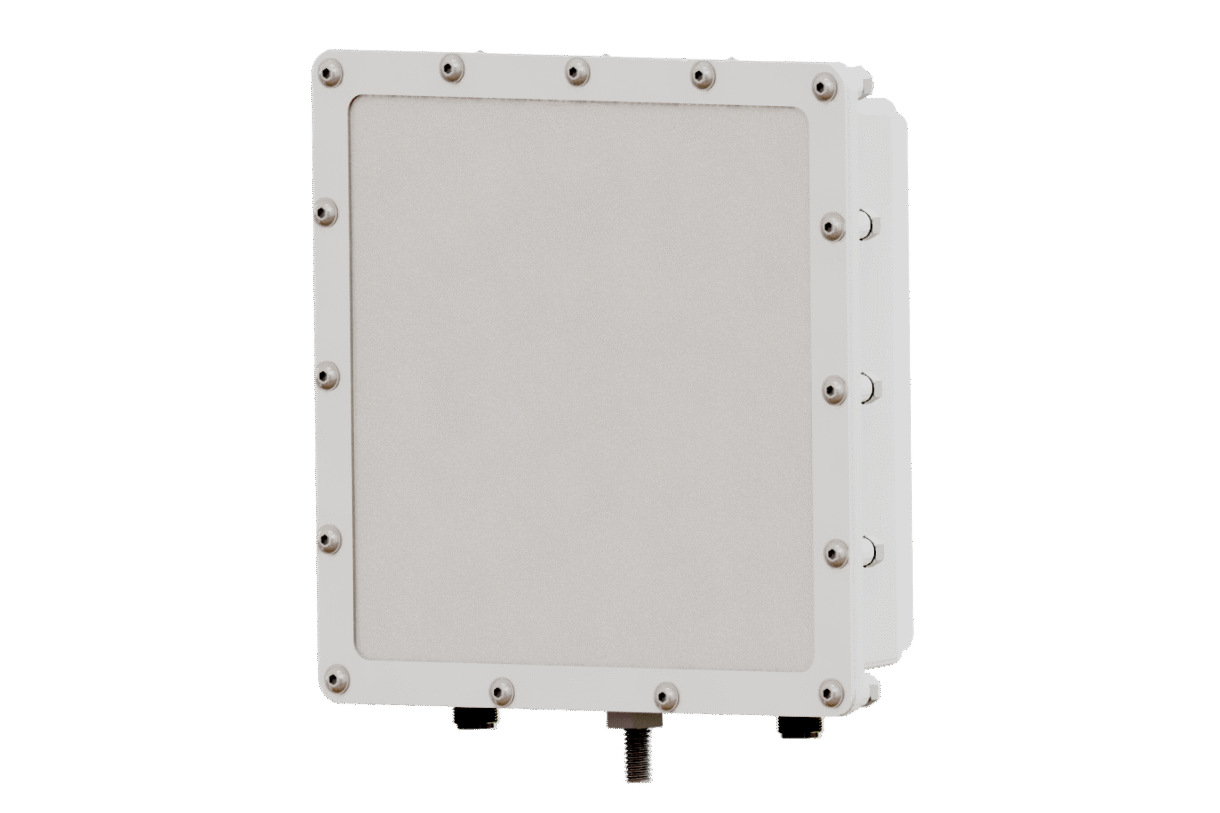

Higher-gain fixed antennas, with their attendant narrower beamwidths, are unable to receive targets over widely varying angles, frequently requiring installation of multiple fixed antenna systems. The QPatch™, with its full 180° of coverage, eliminates this issue, giving you simple, robust, worry-free data capture.
Harness the Wide-Angle Advantage
Capture up to 50-mile line-of-sight targets with +8 dBi gain, built-in 40 dB LNA filtering, and full 180° coverage—no steering needed.
View datasheet
Scoff at the Elements
The QPatch is engineered for durability, including marine-grade 316 stainless steel components and internal RF lightning-surge protection, for long-term, worry-free operation.
View datasheet
Deploy With Ease
With just two coaxial cables supporting both control and RF over 400 ft, and free, expert pointing advice tailored to your operational scenario, it doesn’t get any easier—or better.
View datasheet
Documents
QPatch™ Antenna Datasheet
Features of the QPatch™ 180-degree coverage telemetry antenna, plus specifications.
